Product Summary

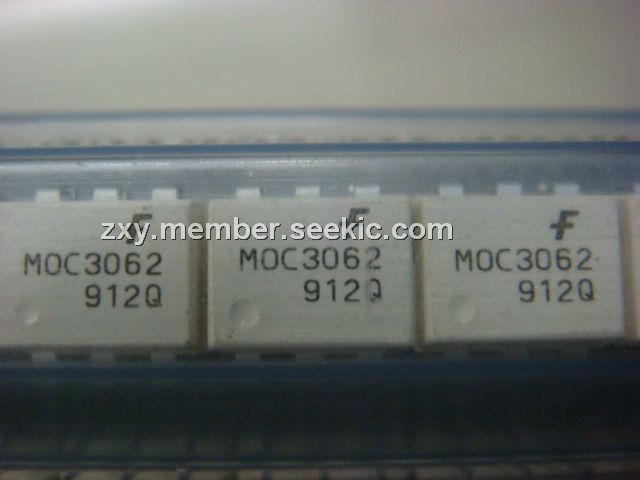

The MOC3062 is a 6-pin DIP zero-cross optoisolators triac driver output. It consists of gallium arsenide infrared emitting diodes optically coupled to monolithic silicon detectors performing the functions of Zero Voltage Crossing bilateral triac drivers. The MOC3062 is designed for use with a triac in the interface of logic systems to equipment powered from 115/240 Vac lines, such as solid–state relays, industrial controls, motors, solenoids and consumer appliances, etc.
Parametrics
MOC3062 absolute maxing ratings: (1)Reverse Voltage VR: 6Volts; (2)Forward Current — Continuous IF: 60mA; (3)Off–State Output Terminal Voltage VDRM: 600Volts; (4)Peak Repetitive Surge Current(PW = 100μs, 120pps) ITSM: 1A; (5)Junction Temperature Range TJ: –40 to +100℃; (6)Ambient Operating Temperature Range TA: –40 to +85℃; (7)Storage Temperature Range Tstg: –40 to +150℃; (8)Soldering Temperature (10 s) TL: 260℃.
Features
MOC3062 features: (1)Simplifies Logic Control of 115/240 Vac Power; (2)Zero Voltage Crossing; (3)dv/dt of 1500 V/μs Typical, 600 V/μs Guaranteed; (4)To order devices that are tested and marked per VDE 0884 requirements, the suffix V must be included at end of part number. VDE 0884 is a test option.

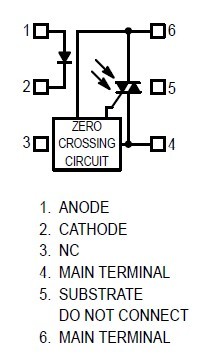

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MOC3062 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
MOC3062FM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin600V Optocoupler Zero Cross Triac Dr |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3062FR2M |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin600V Optocoupler Zero Cross Triac Dr |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3062FR2VM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin600V Optocoupler Zero Cross Triac Dr |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3062FVM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin600V Optocoupler Zero Cross Triac Dr |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3062M |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 600V Optocoupler Triac Driver ZC |
Data Sheet |
|
|
||||||||||||
|
MOC3062-M |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3062M_Q |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 600V Optocoupler Triac Driver ZC |
Data Sheet |
Negotiable |
|
||||||||||||
