Product Summary
The MTD2009J is a monolithic power IC that can be directly controlled through a CPU or a Gate Array with few external parts. And the applications of MTD2009J include office equipment products and industrial robots, and automatic equipment.
Parametrics
MTD2009J maximum ratings: (1)Logic supply: 0~6V; (2)Logic inputs: 0~VCC V; (3)Output voltage: 35V; (4)Output current: 1.2A; (5)Strage temperature:-40~150℃; (6)Junction temperature: 150℃.
Features
MTD2009J features: (1)The input is TTL and CMOS compatible.; (2)Large output IC=2A or 4A, VCE=60V or 80V; (3)Insulated type single in-line packaging with heatsink installed.

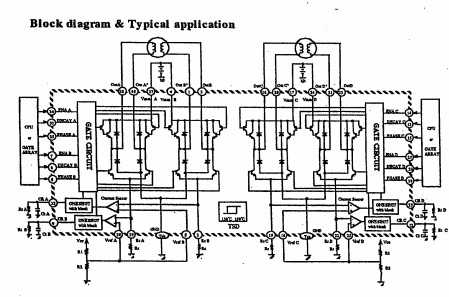

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MTD2009J |
Shindengen |
Motor / Motion / Ignition Controllers & Drivers Power IC |
Data Sheet |
Negotiable |
|
||||||||
|
MTD2009J-3072 |
Shindengen |
Motor / Motion / Ignition Controllers & Drivers V=35 IO=1.2 PT=2.8 |
Data Sheet |
|
|
||||||||
|
MTD2009J-7072 |
Shindengen |
Other Power Management V=35 IO=1.2 PT=2.8 |
Data Sheet |
|
|
||||||||
|
MTD2009J-7102 |
Shindengen |
Other Power Management V=35 IO=1.2 PT=2.8 |
Data Sheet |
Negotiable |
|
||||||||
|
MTD2009J-4102 |
Shindengen |
Other Power Management V=35 IO=1.2 PT=2.8 |
Data Sheet |
Negotiable |
|
||||||||
|
MTD2009J-4072 |
Shindengen |
Other Power Management V=35 IO=1.2 PT=2.8 |
Data Sheet |
Negotiable |
|
||||||||
