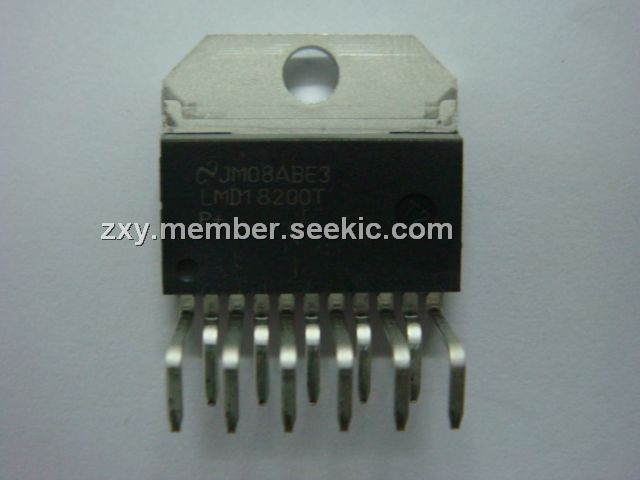

LMD18200T

3A continuous output, 55V supply voltages, H-Bridge, ZIP, Shorted load protection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~12.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $8.00~12.50

PartNumber:: LMD18200T

Brand:: National Semiconductor - NS | Pack: ZIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-29

From Other Seller

Part Number:LMD18200T
US $8.00 - 12.50
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

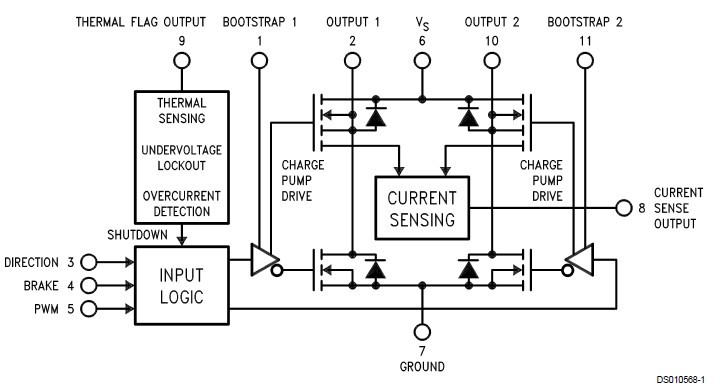

The LMD18200T is a 3A H-Bridge designed for motion control applications. The device is built using a multi-technology process which combines bipolar and CMOS control circuitry with DMOS power devices on the same monolithic structure. Ideal for driving DC and stepper motors; the LMD18200T accommodates peak output currents up to 6A. An innovative circuit which facilitates low-loss sensing of the output current has been implemented.

Parametrics

LMD18200T absolute maximum ratings: (1)Total Supply Voltage (VS, Pin 6): 60V; (2)Voltage at Pins 3, 4, 5, 8 and 9: 12V; (3)Voltage at Bootstrap Pins (Pins 1 and 11): VOUT +16V; (4)Peak Output Current (200 ms): 6A; (5)Continuous Output Current (Note 2): 3A; (6)Power Dissipation (Note 3): 25W; (7)Power Dissipation (TA = 25℃, Free Air): 3W; (8)Junction Temperature, TJ(max): 150℃; (9)ESD Susceptibility (Note 4): 1500V; (10)Storage Temperature, TSTG: -40℃ to +150℃; (11)Lead Temperature (Soldering, 10 sec.): 300℃.

Features

LMD18200T features: (1)Delivers up to 3A continuous output; (2)Operates at supply voltages up to 55V; (3)Low RDS(ON) typically 0.3W per switch; (4)TTL and CMOS compatible inputs; (5)No shoot-through current; (6)Thermal warning flag output at 145℃; (7)Thermal shutdow(outputs off) at 170℃; (8)Internal clamp diodes; (9)Shorted load protection; (10)Internal charge pump with external bootstrap capability.
