Product Summary
The MW005BK is a dc-dc converter. It operates over a wide input-voltage range of 36Vdc to 75Vdc and provides precisely regulated dc outputs. The outputs are fully isolated from the inputs, allowing versatile polarity configurations and grounding connections. The applications of the MW005BK include telecommunications, Digital circuitry, and Distributed power architecture.
Parametrics
MW005BK absolute maximum ratings: (1)Input Voltage: Continuous: 80Vdc, Transient (2ms): 100Vdc; (2)I/O Isolation Voltage: 500Vdc; (3)Operating Ambient Temperature: -40℃ to +85℃; (4)Storage Temperature: -40℃ to 100℃.
Features
MW005BK features: (1)Small size: 50.8mm×27.9mm×11.7mm; (2)Wide input-voltage range: 36Vdc to 75Vdc; (3)Output current limiting, unlimited duration; (4)Output over voltage clamp; (5)Load regulation: 0.15% max.; (6)Line regulation: 0.05% max.; (7)Short-circuit protection; (8)Input-to-input isolation; (9)No external filtering required; (10)Operating ambient temperature range: -40℃ to +85℃; (11)PC-board mountable; (12)High reliability; (13)Meet FCC and VDE Class B limits for radiated emissions.

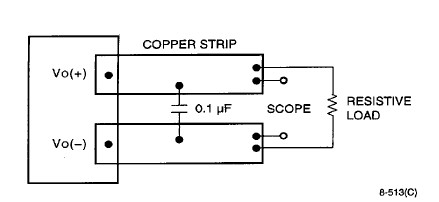

Diagrams

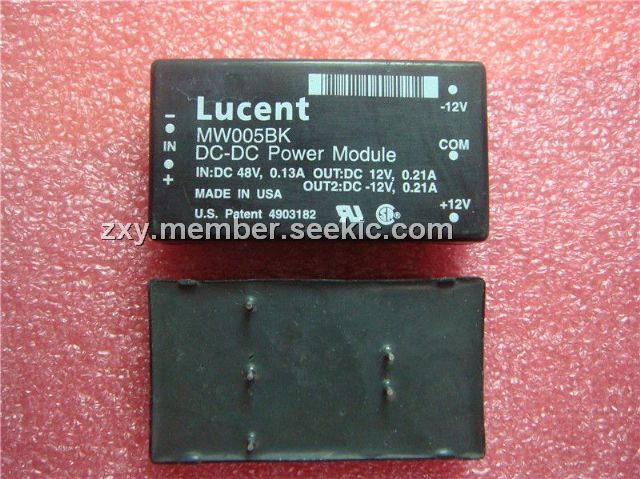

| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MW005BK |
GE Energy (Lineage Power) |
DC/DC Converters 12V/-12V 0.21A 5W |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
MW005A |
GE Energy (Lineage Power) |
DC/DC Converters 5V 1A 5W 4-Pin |
Data Sheet |
Negotiable |
|
||||
|
MW005AJ |
GE Energy (Lineage Power) |
DC/DC Converters +-5V 5W OUT |
Data Sheet |
Negotiable |
|
||||
|
MW005BK |
GE Energy (Lineage Power) |
DC/DC Converters 12V/-12V 0.21A 5W |
Data Sheet |
Negotiable |
|
||||
|
MW005C |
|
CONVERTER DC/DC 15V 5W OUT |
Data Sheet |
Negotiable |
|
||||
|
MW005B |
|
CONVERTER DC/DC 12V 5W OUT |
Data Sheet |
Negotiable |
|
||||
