Product Summary

The NCP1653ADR2G is a controller designed for Continuous Conduction Mode (CCM) Power Factor Correction (PFC) boost circuits. It operates in the follower boost or constant output voltage in 67 or 100 kHz fixed switching frequency. Follower boost offers the benefits of reduction of output voltage and hence reduction in the size and cost of the inductor and power switch. Housed in a DIP.8 or SO.8 package, the circuit minimizes the number of external components and drastically simplifies the CCM PFC implementation. It also integrates high safety protection features. The NCP1653ADR2G is a driver for robust and compact PFC stages. The applications of the NCP1653ADR2G include TV & monitors, PC desktop SMPS, AC adapters SMPS, white goods.

Parametrics

NCP1653ADR2G absolute maximum ratings: (1)FB, Vcontrol, In, CS, VM Pins (Pins 1.5), Maximum Voltage Range Vmax: -0.3 to +9V; Maximum Current Imax: 100mA; (2)Drive Output (Pin 7), Maximum Voltage Range Vmax: -0.3 to +18V; Maximum Current Range Imax: 1.5A; (3)Power Supply Voltage (Pin 8) Maximum Voltage Range Vmax: -0.3 to +18V; Maximum Current Imax: 100mA; (4)Operating Junction Temperature Range TJ: -40 to +125℃; (5)Storage Temperature Range Tstg: -65 to +150℃.

Features

NCP1653ADR2G features: (1)IEC1000-3-2 Compliant; (2)Continuous Conduction Mode; (3)Average Current-Mode or Peak Current-Mode Operation; (4)Constant Output Voltage or Follower Boost Operation; (5)Very Few External Components; (6)Fixed Switching Frequency: 67 kHz = NCP1653A; (7)Soft-Start Capability; (8)VCC Undervoltage Lockout with Hysteresis (8.7 / 13.25 V); (9)Overvoltage Protection (107% of Nominal Output Level); (10)Undervoltage Protection or Shutdown (8% of Nominal Output Level); (11)Programmable Overcurrent Protection; (12)Programmable Overpower Limitation; (13)Thermal Shutdown with Hysteresis (120 / 150℃); (14)Pb-Free Packages are available.

Diagrams

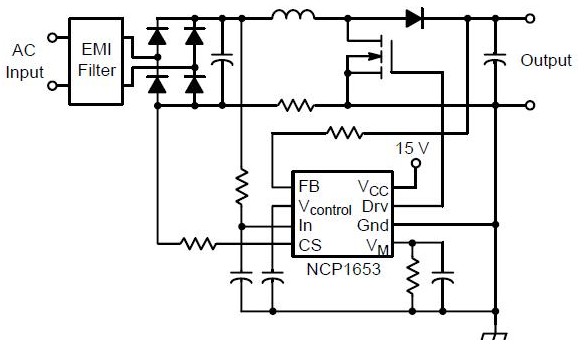

NCP1653ADR2G block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
NCP1653ADR2G
NCP1653ADR2G

ON Semiconductor

Power Factor Correction ICs Fixed Frequency Current Mode PFC

Data Sheet

0-1: $0.92
1-25: $0.83
25-100: $0.66
100-500: $0.58
