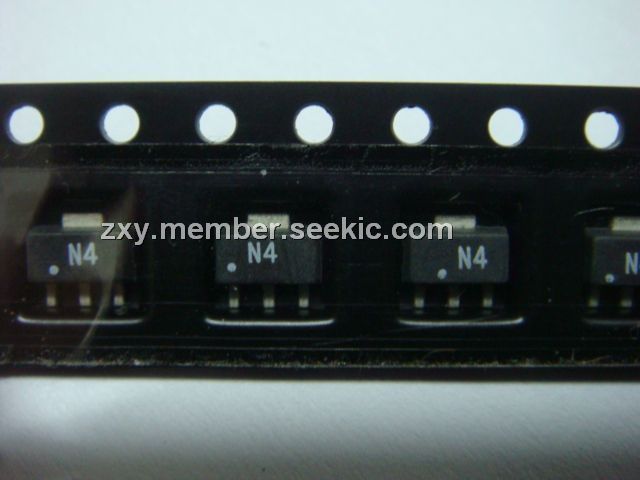

NGA-489

amplifier, SOT89, 14.5dB

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~1.50

PartNumber:: NGA-489

Brand:: SIRENZA MICRODEVICES - SIRENZA | Pack: SOT | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-29

From Other Seller

Part Number:NGA-489
US $0.50 - 1.50
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

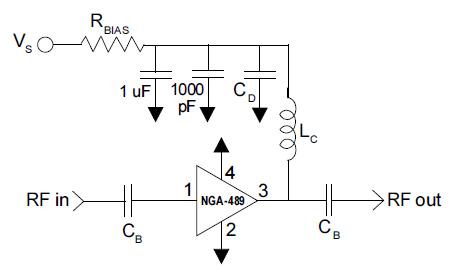

The NGA-489 is a high performance InGaP/GaAs HBT MMIC amplifier. A darlington configuration designed with InGaP process technology provides broadband performance up to 10GHz with excellent thermal performance. At 850MHz and 65mA, the NGA-489 typically provides +38.0dBm output IP3, 15dB of gain, and +17.2dBm of 1dB compressed power using a single positive voltage supply. Only 2 DC-blocking capacitors, a bias resistor and an optional RF choke are required for operation. The applications of the NGA-489 include PA driver amplifier, cellular, PCS, GSM, UMTS, IF amplifier and wireless data, satellite.

Parametrics

NGA-489 absolute maximum ratings: (1)G, small signal gain: 13.5 to 16.0dB, 15.0dB typ at 850MHz; 14.5dB typ at 1950MHz; 14.2dB typat 2400MHz; (2)P1dB, output power at 1dB compression: 17.2dBm typ at 850MHz; 17.0dBm typ at 1950MHz; (3)OIP3, output third order intercept point: 38.0dBm typ at 850MHz; 37.0dBm typ at 1950MHz; (4)bandwidth, determined by return loss (>10dB): 10000MHz typ; (5)IRL, input return loss: 19.7dB typ at 1950MHz; (6)ORL, output return loss: 27.0dB typ at 1950MHz; (7)NF, noise figure: 4.0dB typ at 1950MHz; (8)VD, device operating voltage: 3.6 to 4.4V, 4.0V typ; (9)ID, device operating current: 59 to 71mA, 65mA typ; (10)RTH, j-1, thermal resistance (junction to lead): 145℃/W typ.

Features

NGA-489 features: (1)high gain: 14.5dB at 1950MHz; (2)cascadabke 50Ohm; (3)patented InGaP technology; (4)operates from single supply; (5)low thermal resistance package.
