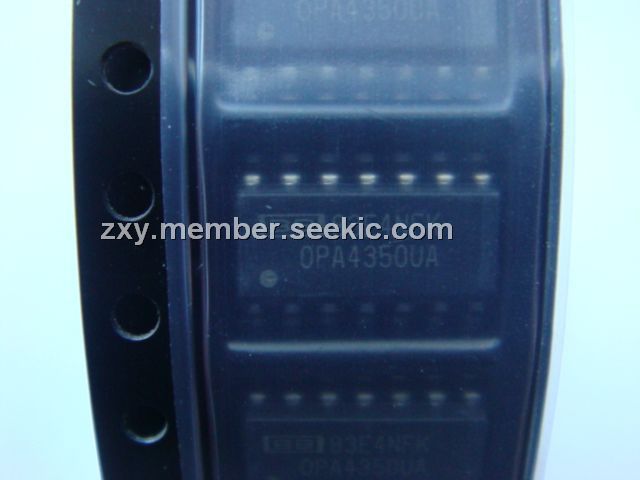

Product Summary
The OPA4350UA rail-to-rail CMOS operational amplifier is optimized for low voltage, single-supply operation. Rail-to-rail input/output, low noise, and high speed operation (38MHz, 22V/ms) make OPA4350UA ideal for driving sampling analog-to-digital converters. It is also well suited for cell phone PA control loops and video processing (75W drive capability) as well as audio and general purpose applications. Single, dual, and quad versions have identical specifications for maximum design flexibility. The OPA4350UA operates on a single supply as low as 2.5V with an input common-mode voltage range that extends 300mV below ground and 300mV above the positive supply. Output voltage swing is to within 10mV of the supply rails with a 10kW load. Dual and quad designs feature completely independent circuitry for lowest crosstalk and freedom from interaction.
Parametrics
OPA4350UA absolute maixmum ratings: (1)Supply Voltage: 5.5V; (2)Signal Input Terminals, Voltage: (V–) – 0.3V to (V+) + 0.3V; Current: 10mA; (3)Output Short Circuit: Continuous; (4)Operating Temperature: –55℃ to +125℃; (5)Storage Temperature: –55℃ to +125℃; (6)Junction Temperature: 150℃; (7)Lead Temperature (soldering, 10s): 300℃.
Features
OPA4350UA features: (1)RAIL-TO-RAIL INPUT; (2)RAIL-TO-RAIL OUTPUT (within 10mV); (3)WIDE BANDWIDTH: 38MHz; (4)HIGH SLEW RATE: 22V/μs; (5)LOW NOISE: 5nV/√Hz; (6)LOW THD+NOISE: 0.0006%; (7)UNITY-GAIN STABLE; (8)MicroSIZE PACKAGES; (9)SINGLE, DUAL, AND QUAD.

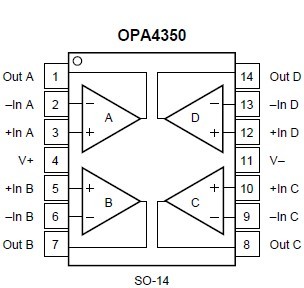

Diagrams
