Product Summary

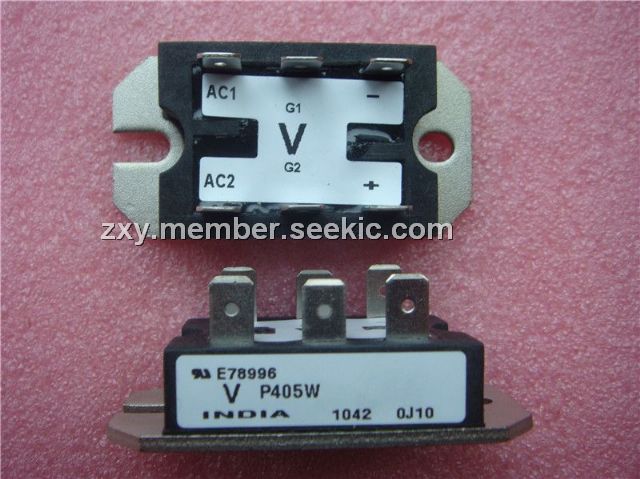

The P405W is a passivated assembled circuit element. The P405W consists of power thyristors and power diodes configured in a single package. With its isolating base plate, mechanical designs are greatly simplified giving advantages of cost reduction and reduced size. Applications of the P405W include power supplies, control circuits and battery chargers.
Parametrics
P405W absolute maximum ratings: (1)ID: 40 A when Tc=80℃; (2)@ TC 80Hz; (3)IFSM @50Hz: 385 A; @ 60Hz: 400 A; (4)I2t @50Hz: 745 A2s; @ 60Hz: 680 A2s; (5)I2t: 7450 A2s; (6)VRRM: 400 to 1200 V; (7)VINS: 2500 V; (8)TJ: - 40 to 125℃.
Features
P405W features: (1)Glass passivated junctions for greater reliability; (2)Electrically isolated base plate; (3)Available up to 1200 VRRM, VDRM; (4)High dynamic characteristics; (5)Wide choice of circuit configurations; (6)Simplified mechanical design and assembly; (7)UL E78996 approved.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 P405W |
|
SCR HY-BRIDGE 1200V 40A PACE-PAK |
Data Sheet |
|
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
|
P405KW |
|
SCR HY-BRIDGE 1200V 40A PACE-PAK |
Data Sheet |
|
|
||||||
|
P405W |
|
SCR HY-BRIDGE 1200V 40A PACE-PAK |
Data Sheet |
|
|
||||||
