Product Summary

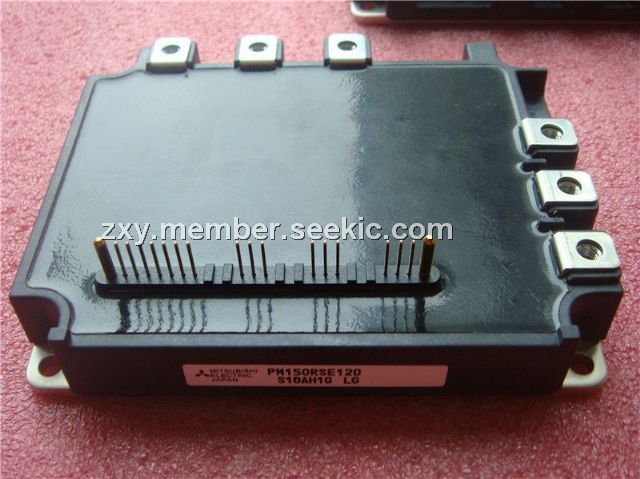

The PM150RSE120 is a intelligent power module. It adopts new 4th generation planar IGBT chip, which performance is improved by 1μm fine rule process.
Parametrics
PM150RSE120 absolute maximum ratings: (1)Collector-Emitter Voltage, VD = 15V, VCIN = 15V, VCES: 1200V; (2)Collector Current, TC = 25℃ ±IC: 150V; (3)Collector Current (Peak), TC = 25℃ ±ICP: 300A; (4)Collector Dissipation, TC = 25℃ PC: 781W; (5)Junction Temperature, Tj: -20 to +150℃.
Features
PM150RSE120 features: (1)3φ 150A, 1200V Current-sense IGBT for 15kHz switching; (2)50A, 1200V Current-sense regenerative brake IGBT; (3)Monolithic gate drive & protection logic; (4)Detection, protection & status indication circuits for overcurrent, short-circuit, over-temperature & under-voltage; (5)Acoustic noise-less 30kW class inverter application.

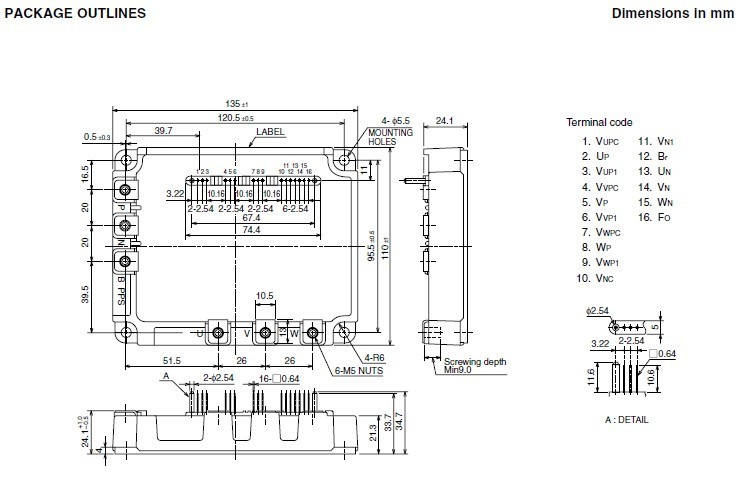

Diagrams
