Product Summary

The RG82852GMV is a GMCH component. It provides the processor interface, DDR SDRAM interface, display interface, and Hub Interface in an Intel 852GM chipset platform. The RG82852GMV is optimized for the Mobile Intel Pentium 4 Processor-M, Mobile Intel Celeron processor and Intel Celeron M processor. It supports a single channel of DDR SDRAM memory. The RG82852GMV Chipset contains advanced power management logic. The RG82852GMV Chipset platform supports the fourth generation mobile I/O Controller Hub to provide the features required by a mobile platform. It is in a 732-pin Micro-FCBGA package.

Parametrics

RG82852GMV absolute maximum ratings: (1)supported FSBs: 400MHz; (2)max TDP: 3.2W; (3)max memory size (dependent on memory type): 2GB; (4) max memory bandwidth: 2.1GB/s; (5)physical address extensions: 32-bit; (6)PCI express revision: 1.1.

Features

RG82852GMV features: (1)Mode Scalable bus protocol; (2)Mobile Intel Pentium 4 Processor-M; (3)System Bus interrupt delivery; (4)Supports system bus at 400-MHz or 3.2 GB/s; (5)Supports host Dynamic Bus Inversion (DBI); (6)Supports 32-bit host bus addressing 12-deep In-Order-Queue; (7)AGTL+ bus driver technology with integrated AGTL termination; (8)resistors; (9)delivery mechanism; (10)Supports interrupts signaled as upstream; (11)Memory Writes from PCI and Hub Interface; (12)MSI sent to the CPU through the System Bus.

Diagrams

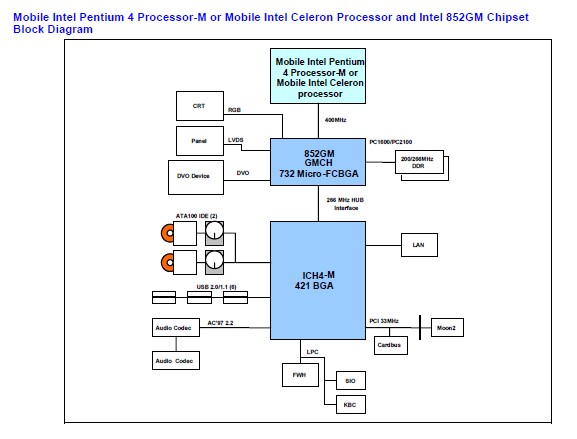

RG82852GMV circuit diagram
