Product Summary

The RT8802AGQV is a 2/3/4/5-phase synchronous buck controller specifically designed to power Intel/AMD next generation microprocessors. It implements an internal 8-bit DAC that is identified by VID code of microprocessor directly. The RT8802AGQV generates VID table that conform to Intel VRD10.x and VRD11 core power with 6.25mV increments and 0.5% accuracy. The applications of the RT8802AGQV include Intel/AMD New generation microprocessor for Desktop PC and Motherboard, Low Output Voltage, High power density DC-DC Converters, Voltage Regulator Modules.

Parametrics

RT8802AGQV absolute maximum ratings: (1)Supply Voltage, VDD: 7V; (2)Input, Output or I/O Voltage: GND-0.3V to VDD+0.3V; (3)Power Dissipation, PD @ TA = 25℃ VQFN亅40L 6x6: 2.857W; (4)Package Thermal Resistance (Note 4) VQFN-40L 6x6, θJA: 35℃/W; (5)Junction Temperature: 150℃; (6)Lead Temperature (Soldering, 10 sec.): 260℃; (7)Storage Temperature Range: -65℃ to 150℃; (8)ESD Susceptibility (Note 2) HBM (Human Body Mode): 2kV; (9)MM (Machine Mode): 200V.

Features

RT8802AGQV features: (1)5V Power Supply; (2)2/3/4/5-Phase Power Conversion with Automatic Phase Selection; (3)8-bit VID Interface, Supporting Intel VRD11/VRD10.x and AMD K8, K8_M2 CPUs; (4)VR_HOT and VR_FAN Indication; (5)Precision Core Voltage Regulation; (6)Power Stage Thermal Balance by DCR Current Sensing; (7)Adjustable Soft-start; (8)Over-Voltage Protection; (9)Adjustable Frequency and Typical at 300kHz per Phase; (10)Power Good Indication; (11)40-Lead VQFN Package; (12)RoHS Compliant and 100% Lead (Pb)-Free.

Diagrams

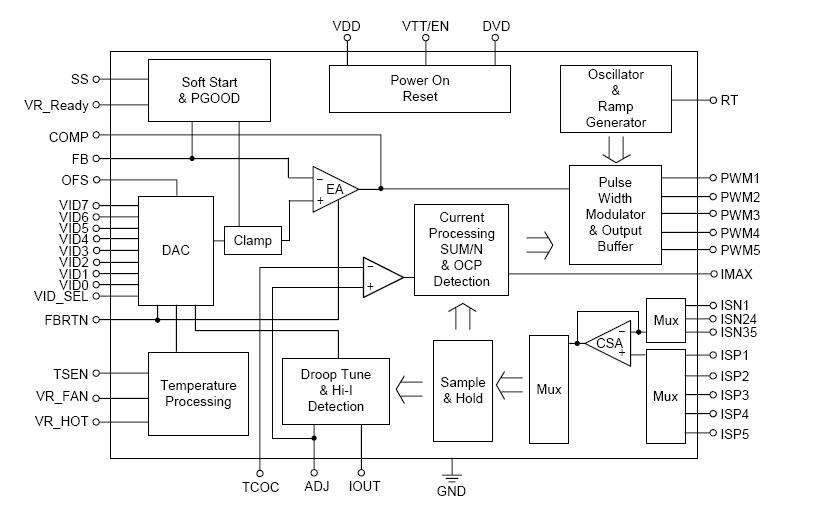

RT8802AGQV block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RT8802AGQV
RT8802AGQV

IC CTRLR PWM MULTI-PHASE 40VQFN
Data Sheet
0-1: $1.57
1-10: $1.42
10-25: $1.27
25-100: $1.14
100-250: $1.01
250-500: $0.89
500-1000: $0.73
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
RT8802AGQV
RT8802AGQV

IC CTRLR PWM MULTI-PHASE 40VQFN
Data Sheet
0-1: $1.57
1-10: $1.42
10-25: $1.27
25-100: $1.14
100-250: $1.01
250-500: $0.89
500-1000: $0.73
RT8841GQW
RT8841GQW

IC CTRLR PWM MULTI-PHASE 40WQFN
Data Sheet
0-1: $1.88
1-10: $1.69
10-25: $1.52
25-100: $1.38
100-250: $1.25
250-500: $1.12
500-1000: $0.94
RT8855GQW
RT8855GQW

IC CTRLR PWM MULTI-PHASE 48WQFN
Data Sheet
0-1: $2.65
1-10: $2.37
10-25: $2.13
25-100: $1.94
100-250: $1.76
250-500: $1.57
500-1000: $1.33
RT8856GQW
RT8856GQW

IC CTRLR PWM MULTI-PHASE 40WQFN
Data Sheet
0-1: $2.35
1-10: $2.11
10-25: $1.89
25-100: $1.72
100-250: $1.56
250-500: $1.40
500-1000: $1.18
RT8859MGQW
RT8859MGQW

IC CTRLR PWM MULTI-PHASE 56WQFN
Data Sheet
0-1: $3.40
1-10: $3.04
10-25: $2.74
25-100: $2.49
100-250: $2.25
250-500: $2.02
500-1000: $1.70
RT8857
RT8857
Other

Data Sheet
Negotiable
