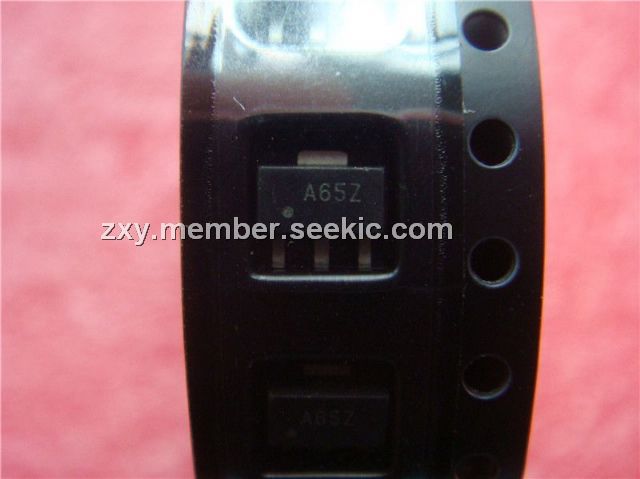

Product Summary
The SGA6589 is a high performance SiGe HBT MMIC Amplifier. A Darlington configuration featuring I micron emitters provides high FT and excellent thermal perfomance. The heterojunction increases breakdown voltage and minimizes leakage current between junctions. Cancellation of emitter junction non-linearities results in higher suppression of intermodulation products. At 850 Mhz and 80mA, the SGA6589 typically provides +32.5 dBm output IP3, 25.5 dB of gain, and +21.5 dBm of IdB compressed power using a single positive voltage supply. Only 2 DC-blocking capacitors, a bias resistor and an optional RF choke are required for operation. The SGA6589 is ideal for: (1)PA Driver Amplifier; (2)Cellular, PCS, GSM, UMTS; (3)IF Amplifier; (4)Wireless Data, Satellite.
Parametrics
SGA6589 absolute maximum ratings: (1)Bandwidth, Determined by Return Loss (>9dB): 4000MHz; (2)IRL, Input Return Loss at 1950 MHz: 13.1dB; (3)ORL, Output Return Loss at 1950 MHz: 9.2dB; (4)NF,Noise at 1950 MHz: 3.0dB; (5)VD, Device Operating Voltage: 4.5V min, 4.9V typ, 5.3V max; (6)ID, Device Operating Current: 72mA min, 80mA typ, 88mA max; (7)RTH.j-l, Thermal Resistance (junction to lead): 97℃/W.
Features
SGA6589 features: (1)High Gain: 20 dB at 19S0 MHz; (2)Cascadable 50 Ohm; (3)Patented SiGe Technology; (4)Operates From Single Supply; (5)Low Thermal Resistance Package.

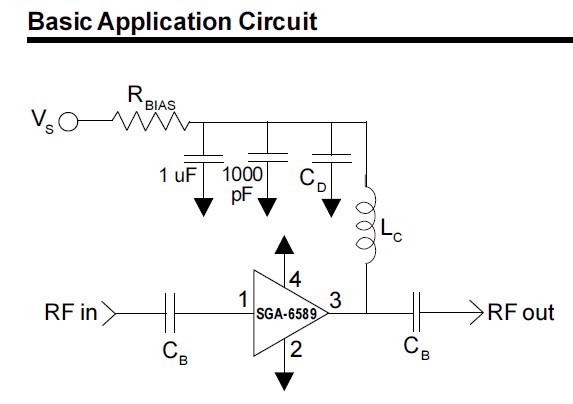

Diagrams
