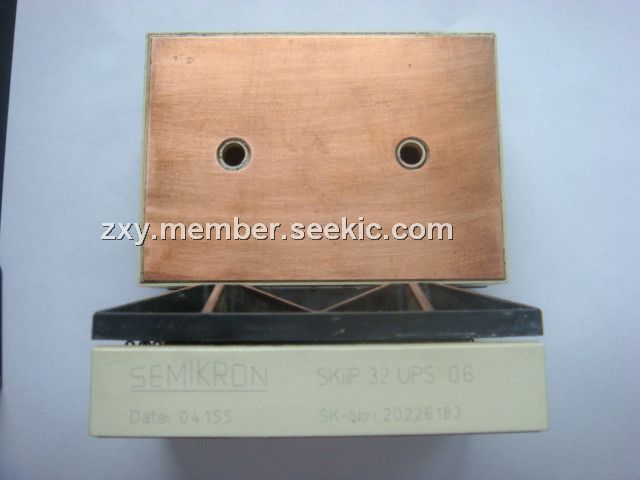

The SKIIP32UPS06 is a 3-phase bridge rectifier +braking chopper +3-phase bridge inverter.
Parametrics
SKIIP32UPS06 absolute maximum ratings: (1)VCES: 600V; (2)VGES: ±20V; (3)IC Theatsink = 25/80℃: 50/35A; (4)ICM tp＜1ms; Theatsink = 25/80℃: 100/70A; (5)IF=–IC Theatsink = 25/80℃: 57/38A; (6)IFM=–ICM tp＜1ms; Theatsink = 25/80℃: 114/76A; (7)VRRM: 800V; (8)ID Theatsink = 80℃: 25A; (9) IFSM tp=10ms; sin. 180°, Tj= 25℃: 370A; (10) tp= 10ms; sin. 180°, Tj= 25℃: 680 A2S; (11)Tj: -40℃ to +150℃; (12)Tstg: -40℃ to 125℃; (13)Visol AC, 1 min.: 2500V.
Features
SKIIP32UPS06 features: (1)VCEsat IC=50A Tj=25(125)℃: 2.7(2.8)V; (2)td(on): VCC = 300 V; VGE =±15V: 120ns; (3)tr: IC = 50A; Tj = 125℃: 160ns; (4)td(off): Rgon = Rgoff = 22Ω: 500ns; (5) tf inductive load: 830ns; (6) Eon + Eoff: 7.3mJ; (7)Cies VCE = 25V; VGE = 0V, 1MHz: 2.8nF; (8)Rthjh per IGBT: 1.0KW.
