Product Summary

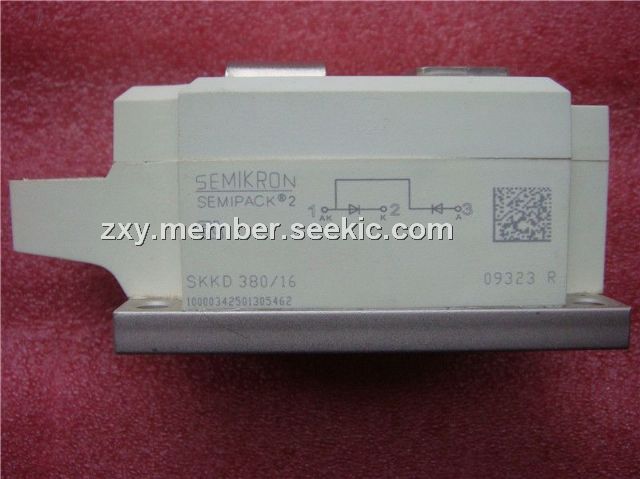

The SKKD380/16 is a Rectifier Diode Module. The appplications of the SKKD380/16 include uncontrolled rectifiers for AC/AC converter, line rectifiers for transisotrized AC motor controllers and field supply for DC motor.
Parametrics
SKKD380/16 absolute maximum ratings: SKKD201-16 absolute maximum ratings: (1)IFAV: 380A; (2)IFSM: 11000A; (3)VF: 1.25V; (4)V(TO): 0.8V; (5)Visol: 3600/3000V; (6)Tvi: -40 to +150℃; (7)Tstg: -40 to +130℃.
Features
SKKD380/16 features: (1)Heat transfer through aluminium nitride ceramic isolated metal basepalte; (2)Precious metal pressure contacts for high reliability; (3)UL recognized, file no E 63 532.
Diagrams
 |
