Product Summary
The SKKH132/16E is a thyristor/diode module.
Parametrics
SKKH132/16E absolute maximum ratings: (1)ITAV: 137 (96) A at Tc=85 (100)℃; (2)ID: 77/100 A at Ta=45℃, 170/200 A at Ta=35℃; (3)IRMS: 240/3*163 A; (4)ITSM: 4700 A at Tvj=25, 4000 A at Tvj=125℃; (5)i2t: 110000 A2s at Tvj=25℃, 80000 A2s at Tvj=125℃; (6)VT: 1.8 V max at Tvj=25℃, IT=500 A; (7)VT(TO): 1 V max at Tvj=125℃; (8)rT: 1.6 mΩ max at Tvj=125℃; (9)IDD; IRD: 40 mA max at Tvj=125℃, VRD=VRRM.
Features
SKKH132/16E features: (1)heat transfer and isolation through aluminium oxide ceramic isolated metal baseplate; (2)hard soldered joints for high reliability; (3)UL recognized, file no. E 63 532.

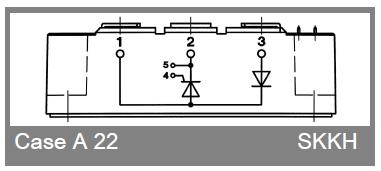

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 SKKH132/16E |
Other |
|
Data Sheet |
Negotiable |
|
||||
