Product Summary

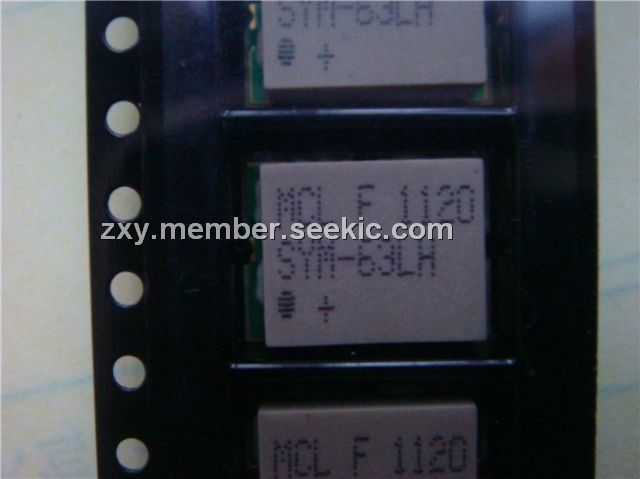

The SYM-63LH+ is an ultra broadband double balanced mixer utilizing core and wire transformers and a diode quad in a ring configuration. The transformers are designed to provide ultra wide bandwidth using simulation software together with Mini-Circuits proprietary transformer technology. The SYM-63LH+ provides an IF response from DC to 1000 MHz and are especially useful in wideband system applications such as IED.

Features

SYM-63LH+ features: (1)Low conversion loss, 8dB for wide bandwidth; (2)High LO to RF isolation; (3)Broadband matching; (4)Compact low profile package 0.38 x 0.50 x 0.15; (5)Insensitive to LO power level variations.
