Product Summary

The T23-A350X is a 3-electrode arrester, which is widely used in Line protection, Station protection and Base stations.

Parametrics

T23-A350X absolute maximum ratings: (1)DC spark-over voltage: 350V, ± 20%; (2)Insulation resistance at 100 Vdc: > 10 GΩ; (3)Capacitance at 1 MHz: < 1.5 pF; (4)Transverse delay time: < 0.2 μs; (5)Arc voltage at 1 A: ~ 35V; (6)Glow to arc transition current: ~ 1A; (7)Glow voltage: ~ 200V; (8)Weight: ~ 2.2 g; (9)Operation and storage temperature: -40 to +90℃; (10)Climatic category (IEC 60068-1): 40/ 90/ 21.

Features

T23-A350X features: (1)Standard size; (2)Fast response time; (3)Very high current rating; (4)Stable performance over life; (5)Very low capacitance; (6)High insulation resistance; (7)RoHS-compatible.

Diagrams

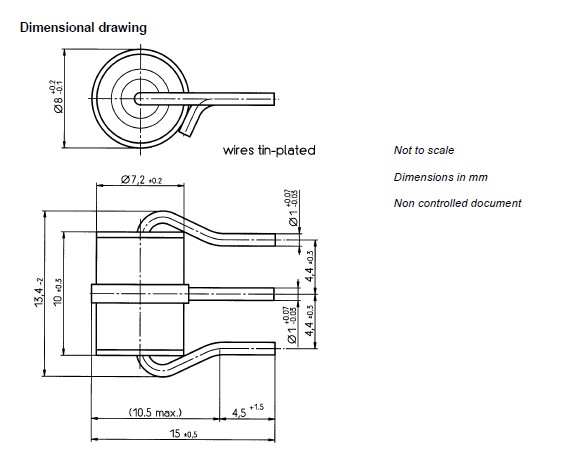

T23-A350X circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

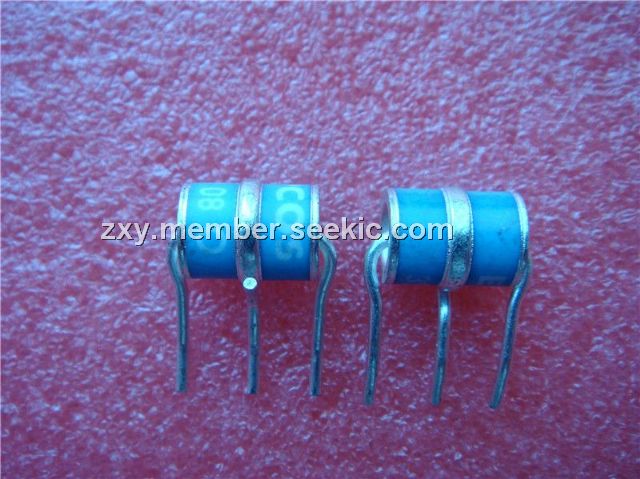

T23-A350X
T23-A350X

SURGE ARRESTER 350V GASTUBE 3PIN
Data Sheet
0-1: $1.73
1-10: $1.40
10-100: $1.07
100-500: $0.82
500-1000: $0.71
1000-5000: $0.66
5000-10000: $0.65
T23-A350XF1
T23-A350XF1
Other

Data Sheet
Negotiable
