Product Summary

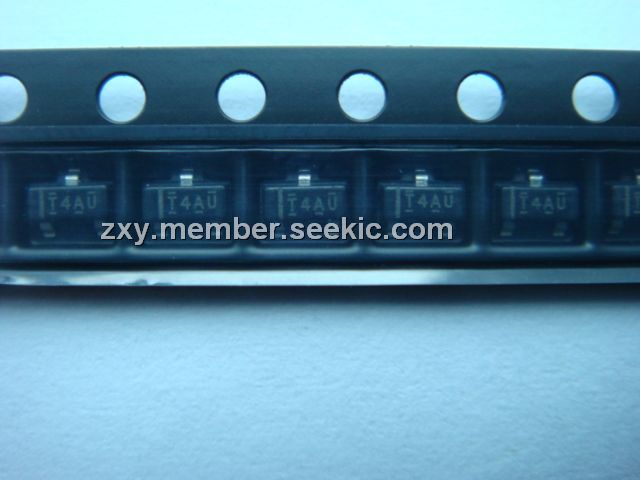

The TL432AIDBVR is a three-terminal adjustable shunt regulator, with specified thermal stability over applicable automotive, commercial, and military temperature ranges. The output voltage can be set to any value between Vref (approximately 2.5 V) and 36V, with two external resistors (see Figure 17). These devices have a typical output impedance of 0.2 Ω. Active output circuitry provides a very sharp turn-on characteristic, making these devices excellent replacements for Zener diodes in many applications, such as onboard regulation, adjustable power supplies, and switching power supplies. The TL432AIDBVR has exactly the same functionality and electrical specifications as the TL431, but has different pinouts for the DBV, DBZ, and PK packages. Both the TL432AIDBVR devices is offered in three grades, with initial tolerances (at 25℃) of 0.5%, 1%, and 2%, for the B, A, and standard grade, respectively. In addition, low output drift vs temperature ensures good stability over the entire temperature range.
Parametrics
TL432AIDBVR absolute maximum ratings: (1)Cathode voltage, VKA: 37 V; (2)Continuous cathode current range, IKA: 100 mA to 150 mA; (3)Reference input current range: 50 μA to 10 mA; (4)Operating virtual junction temperature, TJ: 150℃; (5)Storage temperature range, Tstg: 65℃ to 150℃.
Features
TL432AIDBVR features: (1)Operation From: -40℃ to 125℃; (2)Reference Voltage Tolerance at 25℃: 0.5%, B Grade; 1%, A Grade; 2%, Standard Grade; (3)Low Output Noise; (4)0.2-Ω Typical Output Impedance; (5)Sink-Current Capability: 1 mA to 100 mA; (6)Adjustable Output Voltage: Vref to 36 V.

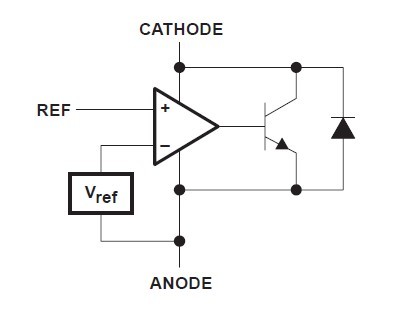

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TL432AIDBVR |
Texas Instruments |
Voltage & Current References Adjustable Precision Shunt Regulator |
Data Sheet |
|
|
||||||||||||
|
TL432AIDBVRE4 |
Texas Instruments |
Voltage & Current References Adjustable Precision Shunt Regulator |
Data Sheet |
|
|
||||||||||||
|
TL432AIDBVRG4 |
Texas Instruments |
Voltage & Current References Adjustable Precision Shunt Regulator |
Data Sheet |
|
|
||||||||||||
