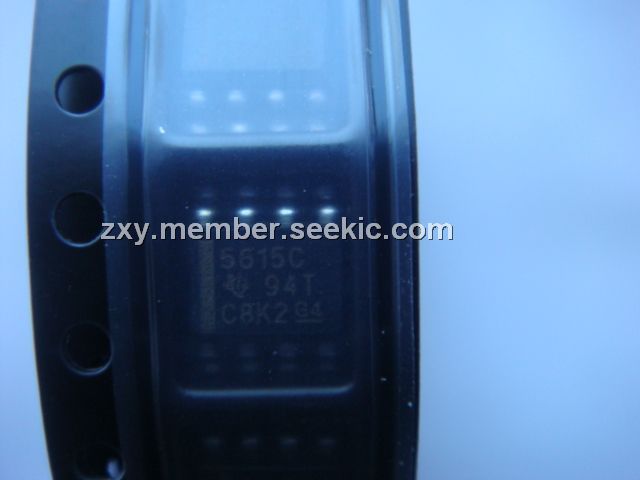

TLC5615CD

10-Bit, digital-to-analog converter, SOP8, 1.75 mW Max Power Consumption

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~5.00

PartNumber:: TLC5615CD

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-30

From Other Seller

Part Number:TLC5615CD
US $2.00 - 5.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TLC5615CD is a 10-bit voltage output digital-to-analog converter (DAC) with a buffered reference input (high impedance). The DAC has an output voltage range that is two times the reference voltage, and the DAC is monotonic. The device is simple to use, running from a single supply of 5 V. A power-on-reset function is incorporated to ensure repeatable start-up conditions. Digital control of the TLC5615CD is over a three-wire serial bus that is CMOS compatible and easily interfaced to industry standard microprocessor and microcontroller devices. The TLC5615CD receives a 16-bit data word to produce the analog output. The digital inputs feature Schmitt triggers for high noise immunity. Digital communication protocols include the SPIE, QSPIE, and MicrowireE standards.

Parametrics

TLC5615CD absolute maixmum ratings: (1)Supply voltage (VDD to AGND): 7 V; (2)Digital input voltage range to AGND: – 0.3 V to VDD + 0.3 V; (3)Reference input voltage range to AGND: – 0.3 V to VDD + 0.3 V; (4)Output voltage at OUT from external source: VDD + 0.3 V; (5)Continuous current at any terminal: ±20 mA; (6)Operating free-air temperature range, TA: TLC5615C: 0℃ to 70℃; (7)Storage temperature range, Tstg: –65℃ to 150℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.

Features

TLC5615CD features: (1)10-Bit CMOS Voltage Output DAC in an 8-Terminal Package; (2)5-V Single Supply Operation; (3)3-Wire Serial Interface; (4)High-Impedance Reference Inputs; (5)Voltage Output Range: 2 Times the Reference Input Voltage; (6)Internal Power-On Reset; (7)Low Power Consumption: 1.75 mW Max; (8)Update Rate of 1.21 MHz; (9)Settling Time to 0.5 LSB: 12.5 ms Typ; (10)Monotonic Over Temperature; (11)Pin Compatible With the Maxim MAX515.
