Product Summary

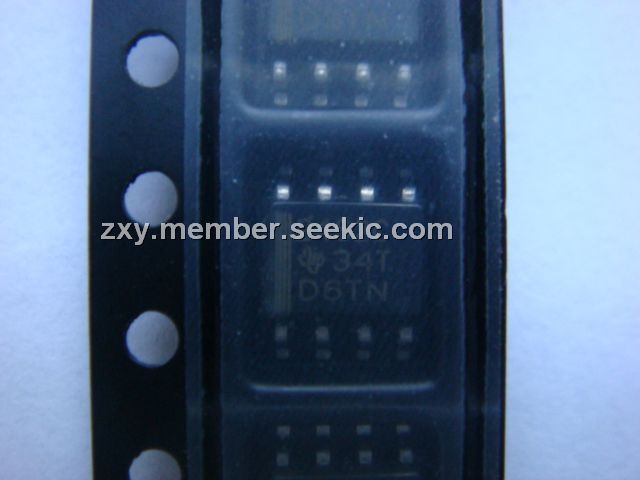

The TLV2462CDGKR is a low-power rail-to-rail input/output operational amplifier specifically designed for portable applications. The input common-mode voltage range extends beyond the supply rails for maximum dynamic range in low-voltage systems. The amplifier output of TLV2462CDGKR has rail-to-rail performance with high-output-drive capability, solving one of the limitations of older rail-to-rail input/output operational amplifiers. This rail-to-rail dynamic range and high output drive make the TLV2462CDGKR ideal for buffering analog-to-digital converters.
Parametrics
TLV2462CDGKR absolute maximum ratings: (1)Supply voltage, VDD: 6 V; (2)Differential input voltage, VID: 0.2 V to VDD + 0.2 V; (3)Input current, II (any input): ± 200 mA; (4)Output current, IO: ± 175 mA; (5)Total input current, II (into VDD+): 175 mA; (6)Total output current, IO (out of GND): 175 mA; (7)Operating free-air temperature range, TA: C suffix: 0℃ to 70℃, I and Q suffix: -40℃ to 125℃, M suffix: -55℃ to 125℃; (8)Maximum junction temperature, TJ: 150℃; (9)Storage temperature range, Tstg: -65℃ to 150℃; (10)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TLV2462CDGKR features: (1)Rail-to-Rail Output Swing; (2)Gain Bandwidth Product: 6.4 MHz; (3)±80 mA Output Drive Capability; (4)Supply Current: 500 μA/channel; (5)Input Offset Voltage: 100 μV; (6)Input Noise Voltage: 11 nV/√Hz; (7)Slew Rate: 1.6 V/μs; (8)Micropower Shutdown Mode (TLV2460/3/5): 0.3 μA/Channel; (9)Universal Operational Amplifier EVM; (10)Available in Q-Temp Automotive, HighRel Automotive Applications, Configuration Control/Print Support, Qualification to Automotive Standards.
Diagrams
