Product Summary
The TLV271IDBVR is a 550-UA/CH 3-MHZ rail to rail output operational amplifier. The TLV271IDBVR takes the minimum operating supply voltage down to 2.7 V over the extended industrial temperature range while adding the rail-to-rail output swing feature. This makes it an ideal alternative to the TLC27x family for applications where rail-to-rail output swings are essential. The TLV271IDBVR also provides 3-MHz bandwidth from only 550 μA. The TLV271IDBVR is fully specified for 5-V and ±5-V supplies. The maximum recommended supply voltage is 16 V, which allows the devices to be operated from a variety of rechargeable cells (±8 V supplies down to ±1.35 V). The CMOS inputs enable use in high-impedance sensor interfaces, with the lower voltage operation making an attractive alternative for the TLV271IDBVR in battery-powered applications. All members are available in PDIP and SOIC with the singles in the small SOT-23 package, duals in the MSOP, and quads in the TSSOP package.
Parametrics
TLV271IDBVR absolute maximum ratings: (1)Supply voltage, VDD (see Note 1): 16.5 V; (2)Differential input voltage, VID: ±VDD; (3)Input voltage range, VI: 0.2 V to VDD + 0.2 V; (4)Input current range, II: ±10 mA; (5)Output current range, IO: ±100 mA; (6)Continuous total power dissipation: See Dissipation Rating Table; (7)Operating free-air temperature range, TA: C suffix: 0℃ to 70℃.
Features
TLV271IDBVR features: (1)Rail-To-Rail Output; (2)Wide Bandwidth: 3 MHz; (3)High Slew Rate: 2 .4 V/μs; (4)Supply Voltage Range2.7 V to 16 V; (5)Supply Current: 550 μA/Channel; (6)Input Noise Voltage: 39 nV/√Hz; (7)Input Bias Current: 1 pA; (8)Specified Temperature Range: 0℃ to 70℃. Commercial Grade. -40℃ to 125℃: Industrial Grade; (9)Ultrasmall Packaging. 5 Pin SOT-23 (TLV271). 8 Pin MSOP (TLV272); (10)Ideal Upgrade for TLC27x Family.

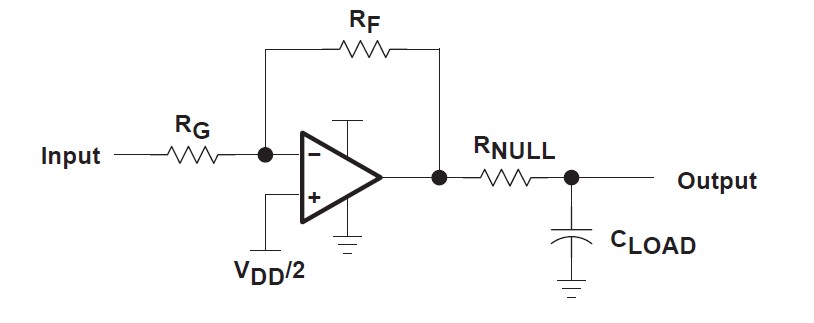

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

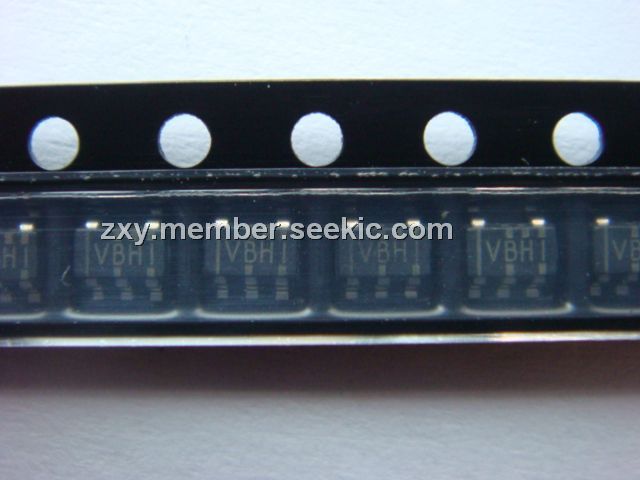

 TLV271IDBVR |
Texas Instruments |
Operational Amplifiers - Op Amps 550uA/Ch 3MHz R/R Op |
Data Sheet |
|
|
||||||||||||
|
TLV271IDBVRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps 550-uA/Ch 3-MHz Rail-to-Rail Out |
Data Sheet |
|
|
||||||||||||
