Product Summary
The TPA0253DGQ is a 1W mono bridge-tied-load (BTL) amplifier designed to drive speakers with as low as 8-Ω impedance. The mono signal is created by summing left and right inputs internally. The TPA0253DGQ can be reconfigured on the fly to drive two stereo single-ended (SE) signals into headphones. This makes the TPA0253DGQ ideal for use in small notebook computers, PDAs, digital personal audio players, anyplace a mono speaker and stereo headphones are required. From a 5V supply, the TPA0253DGQ can deliver 1-W of power into an 8Ω speaker.
Parametrics
TPA0253DGQ absolute maximum ratings: (1)Supply voltage, VDD: 6 V; (2)Input voltage range, VI:–0.3 V to VDD +0.3 V; (3)Continuous total power dissipation: internally limited (see Dissipation Rating Table); (4)Operating free-air temperature range, TA (see Table 3):–40℃ to 85℃; (5)Operating junction temperature range, TJ:–40℃ to 150℃; (6)Storage temperature range, Tstg:–65℃ to 150℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TPA0253DGQ features: (1)Ideal for Notebook Computers, PDAs, and Other Small Portable Audio Devices; (2)1 W Into 8Ω From 5V Supply; (3)0.3 W Into 8Ω From 3V Supply; (4)Stereo Head Phone Drive; (5)Mono (BTL) Signal Created by Summing Left and Right Signals Internally; (6)Wide Power Supply Compatibility 2.5 V to 5.5 V; (7)Low Supply Current; (8)3.2mA Typical at 5V; (9)2.7mA Typical at 3V; (10)Shutdown Control: 1μA Typical; (11)Shutdown Pin Is TTL Compatible; (12)–40℃ to 85℃ Operating Temperature Range; (13)Space-Saving, Thermally-Enhanced MSOP Packaging.

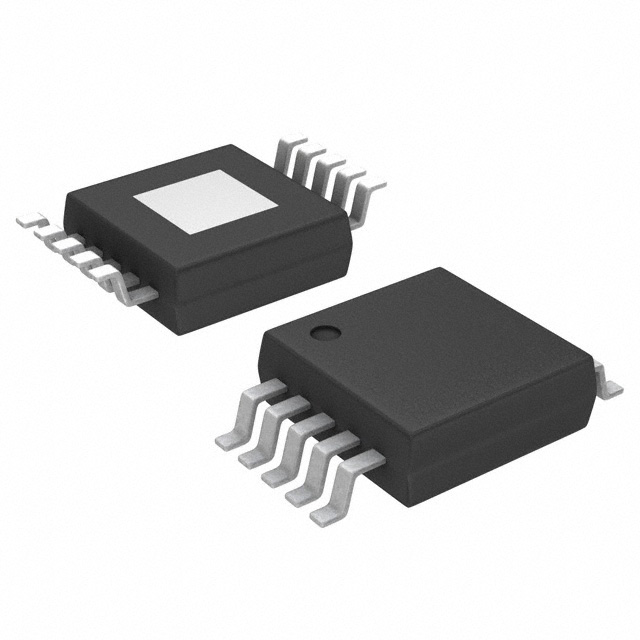

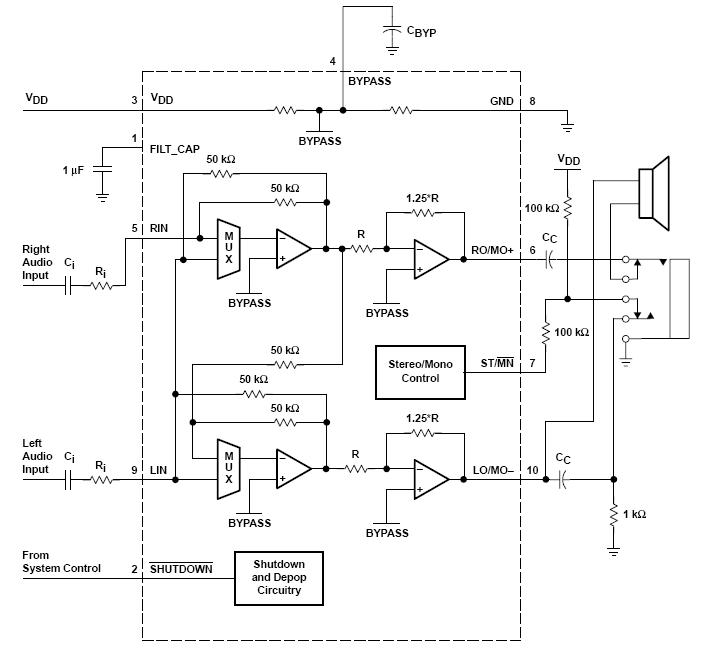

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

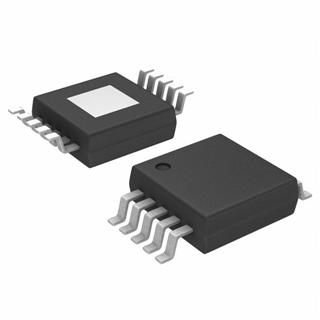

 TPA0253DGQ |
Texas Instruments |
Audio Amplifiers Mono Lo-Pwr Class-AB |
Data Sheet |
|
|
||||||||||||
|
TPA0253DGQG4 |
Texas Instruments |
Audio Amplifiers Mono Lo-Pwr Class-AB |
Data Sheet |
|
|
||||||||||||
|
TPA0253DGQR |
Texas Instruments |
Audio Amplifiers Mono Lo-Pwr Class-AB |
Data Sheet |
|
|
||||||||||||
|
TPA0253DGQRG4 |
Texas Instruments |
Audio Amplifiers Mono Lo-Pwr Class-AB |
Data Sheet |
|
|
||||||||||||
