Product Summary
The TPS76201DBVR low-dropout (LDO) voltage regulator features an adjustable output voltage as low as 0.7 V. It is an ideal regulator for sub 1.2-V DSP core voltage supplies and is equally suited for similar applications with other low-voltage processors and controllers. SOT-23 packaging and the high-efficiency that results from the regulator’s ultralow power operation make the TPS76201DBVR especially useful in handheld and portable battery applications. This regulator features low dropout voltages and ultralow quiescent current compared to conventional LDO regulators. Offered in a 5-terminal small outline integrated-circuit SOT-23 package, the TPS76201DBVR is ideal for micropower operations and where board space is at a premium.
Parametrics
TPS76201DBVR absolute maximum ratings: (1)Input voltage range: –0.3 V to 13.5 V; (2)Voltage range at EN: –0.3 V to VI + 0.3 V; (3)Voltage on OUT, FB: 7 V; (4)Peak output current: Internally limited; (5)ESD rating, HBM: 2 kV; (6)Operating virtual junction temperature range, TJ: –40℃ to 150℃; (7)Storage temperature range, Tstg: –65℃ to 150℃.
Features
TPS76201DBVR features: (1)100-mA Low-Dropout Regulator; (2)Adjustable Output Voltage (0.7 V to 5.5 V); (3)Only 23 μA Quiescent Current at 100 mA; (4)1 μA Quiescent Current in Standby Mode; (5)Over Current Limitation; (6)–40℃ to 125℃ Operating Junction Temperature Range; (7)5-Pin SOT-23 (DBV) Package.

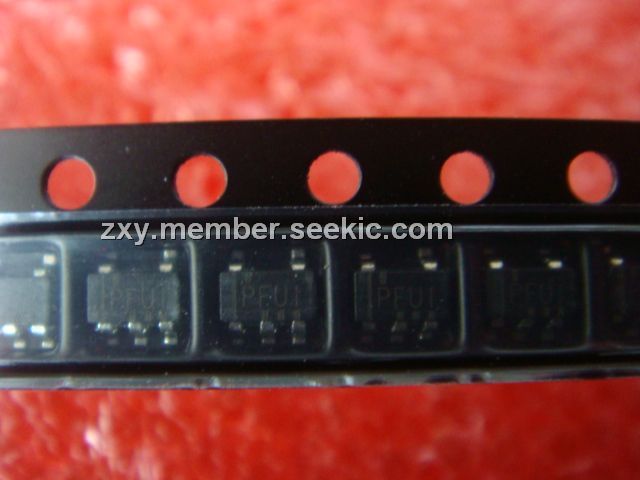

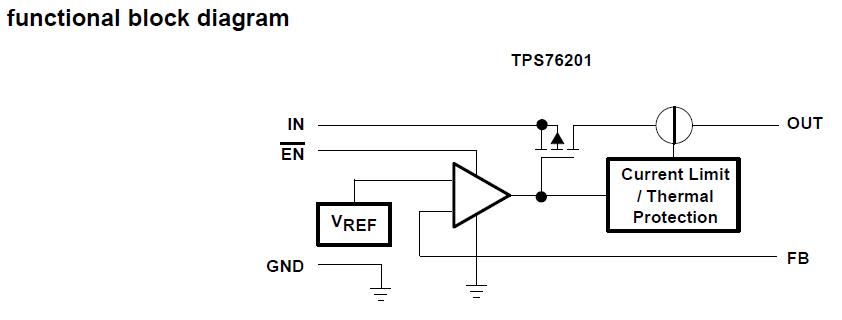

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TPS76201DBVR |
Texas Instruments |
Low Dropout (LDO) Regulators 100mA Adj LDO |
Data Sheet |
|
|
||||||||||||
|
TPS76201DBVRG4 |
Texas Instruments |
Low Dropout (LDO) Regulators 100mA adjustable output 0.7V to 5.5V |
Data Sheet |
|
|
||||||||||||
