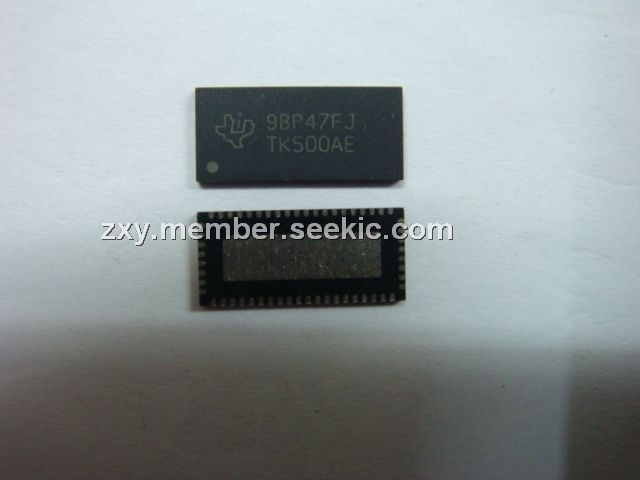

Product Summary
The TS3L500AERHUR is a 16-bit to 8-bit multiplexer/demultiplexer LAN switch with a single select (SEL) input. SEL controls the data path of the multiplexer/demultiplexer. The device provides additional I/Os for switching status indicating LED signals and includes high ESD protection. The device provides a low and flat ON-state resistance (ron) and an excellent ON-state resistance match. Low input/output capacitance, high bandwidth, low skew, and low crosstalk among channels make this device suitable for various LAN applications, such as 10/100/1000 Base-T. This device can be used to replace mechanical relays in LAN applications. It also can be used to route signals from a 10/100 Base-T ethernet transceiver to the RJ-45 LAN connectors in laptops or in docking stations. The applications of the TS3L500AERHUR are: 10/100/1000 Base-T Signal Switching; Differential (LVDS, LVPECL) Signal Switching; Audio/Video Switching;Hub and Router Signal Switching.
Parametrics
TS3L500AERHUR absolute maximum ratings: (1)VCC Supply voltage range –0.5 4.6 V; (2)VIN Control input voltage range(2) (3) –0.5 7 V; (3)VI/O Switch I/O voltage range(2) (3) (4) –0.5 7 V; (4)IIK Control input clamp current VIN < 0 –50 mA; (5)II/OK I/O port clamp current VI/O < 0 –50 mA; (6)II/O ON-state switch current(5) ±128 mA; (7)Continuous current through VDD or GND ±100 mA; (8)θJA Package thermal impedance(6) 31.8 ℃/W; (9)Tstg Storage temperature range –65 150 ℃.
Features
TS3L500AERHUR features: (1)Wide Bandwidth (BW = 950 MHz Typ); (2)Low Crosstalk (XTALK = –37 dB Typ); (3)Low Bit-to-Bit Skew (tsk(o) = 100 ps Max); (4)Low and Flat ON-State Resistance(ron = 4 W Typ, ron(flat) = 0.5 W Typ); (5)Low Input/Output Capacitance(CON = 8 pF Typ); (6)Rail-to-Rail Switching on Data I/O Ports(0 to 3.6 V); (7)VCC Operating Range From 3 V to 3.6 V; (8)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (9)ESD Performance Tested Per JESD 22.

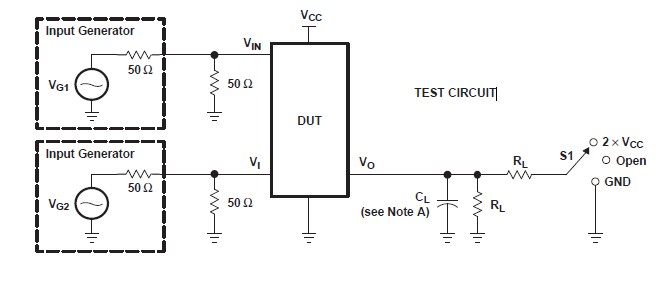

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TS3L500AERHUR |
Texas Instruments |
Power Switch ICs - POE / LAN 16B-8B SPDT Gigabit LAN Sw |
Data Sheet |
|
|
||||||||||||
|
TS3L500AERHURG4 |
Texas Instruments |
Power Switch ICs - POE / LAN 16B-8B SPDT Gigabit LAN Sw |
Data Sheet |
|
|
||||||||||||
