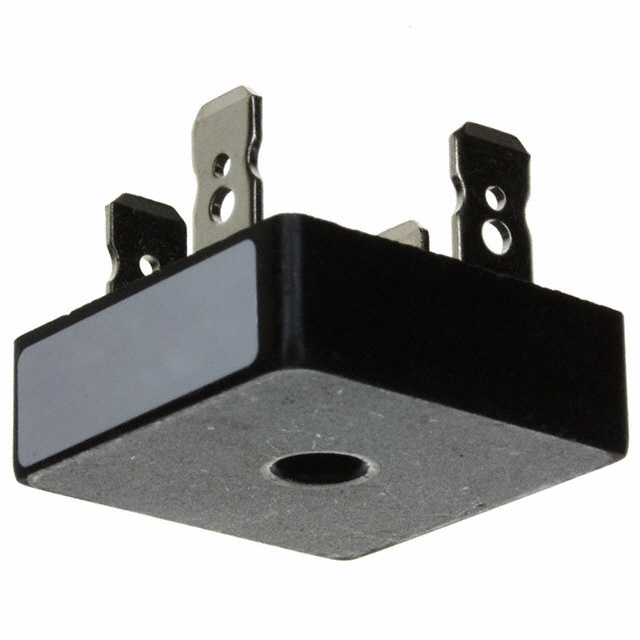

Product Summary

The 26MB160A is a extremely compact, encapsulated single phase bridge rectifier offering efficient and reliable operation. It is intended for use in general purpose and instrumentation applications.

Parametrics

26MB160A absolute maximum ratings: (1)IO: 25 A @ TC=70 ℃; (2)IFSM: 400 A @50Hz, 420 A @ 60Hz; (3)I2t: 790 A2s @ 50Hz, 725 A2s @ 60Hz; (4)VRRM range: 1400 to 1600 V; (5)TJ: - 55 to 150 ℃.

Features

26MB160A features: (1)Universal, 3 way terminals: push-on, wrap around or solder; (2)High thermal conductivity package, electrically insulated case; (3)Center hole fixing; (4)Excellent power/volume ratio; (5)UL E 62320 approved; (6)Nickel plated terminals solderable as per MIL-STD-202 Method 208; solder: Sn/Pb (60/40); solder temperature: 235-260℃ max. time: 8-10 secs.

Diagrams

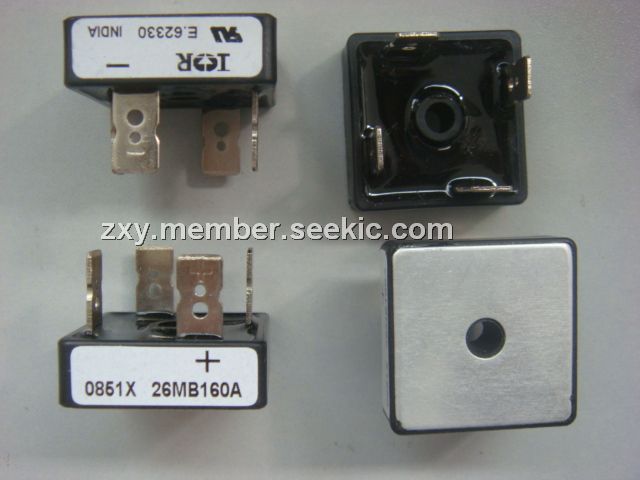

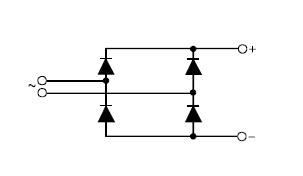

26MB160A diagram
