Product Summary
The 2MBI300L-060 is an IGBT module. The applications of the 2MBI300L-060 include inverter for motor drive, AC and DC servo drive amplifier, uninerruptible power supply, industrial machines, such as welding machines
Parametrics
2MBI300L-060 absolute maximum ratings: (1)collector-emitter voltage: 600 V; (2)gate-emitter voltage: 20 V; (3)collector current: 300 A; (4)max. power dissipation: 1200 W; (5)operating temperature: +150℃; (6)storage temperature: -40 to +125℃.
Features
2MBI300L-060 features: (1)high speed switching; (2)low saturation voltage; (3)voltage drive.

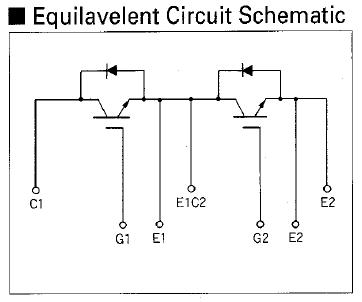

Diagrams
![]() |
