Product Summary

The 2SK2837 is a TOSHIBA Field Effect Transistor. The applications of the 2SK2837 include Chopper Regulator, DC-DC Converter and Motor Drive Applications.

Parametrics

2SK2837 absolute maximum ratings: (1)Drain.source voltage: 500 V; (2)Drain.gate voltage (RGS = 20 kΩ): 500 V; (3)Gate.source voltage: ±30 V; (4)Drain current: DC: 20 A, Pulse: 80 A; (5)Drain power dissipation (Tc = 25℃): 150 W; (6)Single pulse avalanche energy: 960 mJ; (7)Avalanche current: 20 A; (8)Repetitive avalanche energy: 15 mJ; (9)Channel temperature: 150 ℃; (10)Storage temperature range: -55 to 150 ℃.

Features

2SK2837 features: (1)Low drain-source ON resistance: RDS (ON) = 0.21 Ω (typ.); (2)High forward transfer admittance: |Yfs| = 17 S (typ.); (3)Low leakage current: IDSS = 100 μA (max) (VDS = 500 V); (4)Enhancement mode: Vth = 2.0 to 4.0 V (VDS = 10 V, ID = 1 mA).

Diagrams

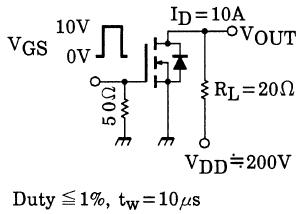

2SK2837 Switching time

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2SK2837
2SK2837

MOSFET N-CH 500V 20A TO-3PN
Data Sheet
Negotiable
2SK2837(Q,T)
2SK2837(Q,T)

MOSFET N-CH 500V 20A TO-3PN
Data Sheet
Negotiable
