Product Summary
The ADC1175CIMTC is a low power, 20 Msps analog-to-digital converter that digitizes signals to 8 bits while consuming just 60 mW of power (typ). The ADC1175CIMTC uses a unique architecture that achieves 7.5 Effective Bits. Output formatting is straight binary coding. The applications of the ADC1175CIMTC include Video Digitization, Digital Still Cameras, Set Top Boxes, Communications, Medical Imaging, Personal Computer Video Cameras, Digital Television, CCD Imaging, Electro-Optics.
Parametrics
ADC1175CIMTC absolute maximum ratings: (1)AVDD, DVDD: 6.5V; (2)Voltage on Any Pin: -0.3V to 6.5V; (3)VRT, VRB: AVSS to AVDD; (4)CLK, OE Voltage: -0.5 to (AVDD + 0.5V); (5)Digital Output Voltage: DVSS to DVDD; (6)Input Current: ±25mA; (7)Package Input Current: ±50mA; (8)ESD Susceptibility: Human Body Model 2000V, Machine Model 200V; (9)Soldering Temp., Infrared, 10 sec.: 300℃; (10)Storage Temperature: -65℃ to +150℃.
Features
ADC1175CIMTC features: (1)Internal Sample-and-Hold Function; (2)Single +5V Operation; (3)Internal Reference Bias Resistors; (4)Industry Standard Pinout; (5)TRI-STATE Outputs.

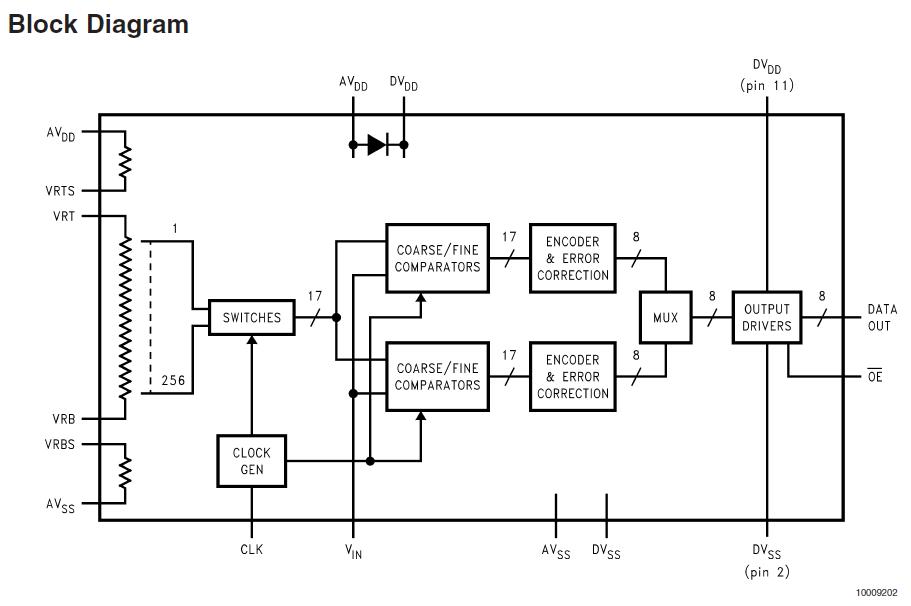

Diagrams
