ADC128S022CIMT/NOPB

A/D Converter, 16TSSOP, 8-Channel, 50 kSPS to 200 kSPS, 12-Bit, ADC128S022CIMT/NOPB, -0.3V to 6.5V, ±10 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.30~3.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.30~3.50

PartNumber:: ADC128S022CIMT/NOPB

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:ADC128S022CIMT/NOPB
US $3.30 - 3.50
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

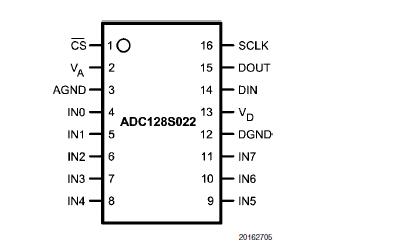

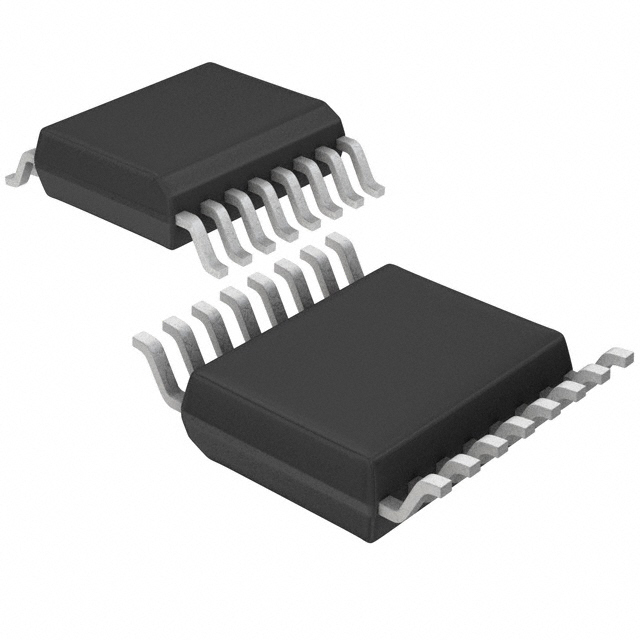

The ADC128S022CIMT/NOPB is a low-power, eight-channel CMOS 12-bit analog-to-digital converter specified for conversion throughput rates of 50 ksps to 200 ksps. The ADC128S022CIMT/NOPB is based on a successive-approximation register architecture with an internal track-and-hold circuit. It can be configured to accept up to eight input signals at inputs IN0 through IN7. The output serial data is straight binary and is compatible with several standards, such as SPI., QSPI, MICROWIRE, and many common DSP serial interfaces. The ADC128S022CIMT/NOPB may be operated with independent analog and digital supplies. The analog supply (VA) can range from +2.7V to +5.25V, and the digital supply (VD) can range from +2.7V to VA. Normal power consumption using a +3V or +5V supply is 1.2 mW and 7.5 mW, respectively. The power-down feature reduces the power consumption to 0.06 μW using a +3V supply and 0.25 μW using a +5V supply. The ADC128S022CIMT/NOPB is packaged in a 16-lead TSSOP package. Operation over the extended industrial temperature range of -40℃ to +105℃ is guaranteed.

Parametrics

ADC128S022CIMT/NOPB absolute maximum ratings: (1)Analog Supply Voltage VA: -0.3V to 6.5V; (2)Digital Supply Voltage VD: -0.3V to VA + 0.3V, max 6.5V; (3)Voltage on Any Pin to GND: -0.3V to VA +0.3V; (4)Input Current at Any Pin: ±10 mA; (5)Package Input Current: ±20 mA; (6)ESD Susceptibility Human Body Model: 2500V; (7)ESD Susceptibility Machine Model: 250V; (8)Junction Temperature: +150℃; (9)Storage Temperature: -65℃ to +150℃.

Features

ADC128S022CIMT/NOPB features: (1)Eight input channels; (2)Variable power management; (3)Independent analog and digital supplies; (4)SPI/QSPI/MICROWIRE/DSP compatible; (5)Packaged in 16-lead TSSOP; (6)Conversion Rate: 50 ksps to 200 ksps; (7)DNL (VA = VD = 5.0 V): +1.0 / -0.7 LSB (max); (8)INL (VA = VD = 5.0 V): ±1.0 LSB (max); (9)Power Consumption: 3V Supply 1.2 mW (typ), 5V Supply 7.5 mW (typ).
