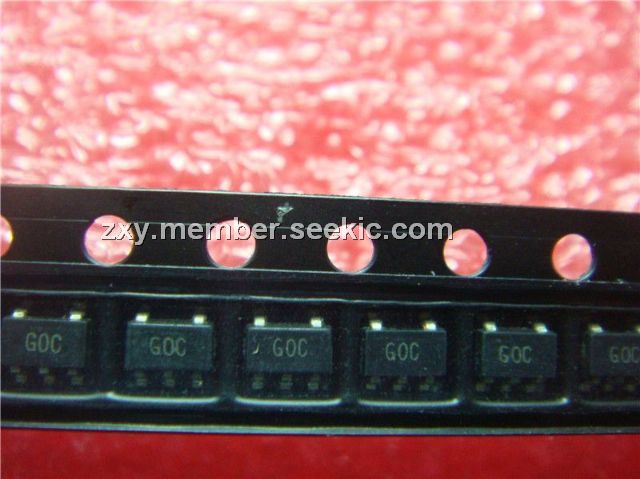

Product Summary

The ADCMP600BRJZ is a very fast comparator fabricated on XFCB2, an Analog Devices, Inc. proprietary process. This comparator is exceptionally versatile and easy to use. Features include an input range from GND - 0.5 V to VCC + 0.2 V, low noise, TTL-/CMOS-compatible output drivers, and latch inputs with adjustable hysteresis and/or shutdown inputs. The ADCMP600BRJZ offers 5 ns propagation delay with 10 mV overdrive on 3 mA typical supply current. It is available in 5-lead SC70 and SOT-23 packages.

Parametrics

ADCMP600BRJZ absolute maximum ratings:(1)Supply Voltages: Input Supply Voltage (VCCI to GND) : -0.5 V to +6.0 V and Output Supply Voltage (VCCO to GND): -0.5 V to +6.0 V and Positive Supply Differential (VCCI - VCCO): -6.0 V to +6.0 V. (2)Input Voltages: Input Voltage: -0.5 V to VCCI + 0.5 V and Differential Input Voltage: ±(VCCI + 0.5 V) and Maximum Input/Output Current : ±50 mA. (3)Shutdown Control Pin: Applied Voltage (HYS to GND) : -0.5 V to VCCO + 0.5 V and Maximum Input/Output Current : ±50 mA. (4)Latch/Hysteresis Control Pin: Applied Voltage (HYS to GND): -0.5 V to VCCO + 0.5 V and Maximum Input/Output Current: ±50 mA. (5)Output Current : ±50 mA. (6)Temperature: Operating Temperature, Ambient : -40°C to +125°C and Operating Temperature, Junction : 150°C and Storage Temperature Range: -65°C to +150°C.

Features

ADCMP600BRJZ features:(1)Fully specified rail to rail at VCC = 2.5 V to 5.5 V. (2)Input common-mode voltage from -0.2 V to VCC + 0.2 V. (3)Low glitch CMOS-/TTL-compatible output stage. (4)3.5 ns propagation delay. (5)10 mW at 3.3 V. (6)Shutdown pin. (7)Single-pin control for programmable hysteresis and latch. (8)Power supply rejection > 50 dB. (9)Improved replacement for MAX999. (10)-40°C to +125°C operation.

Diagrams

ADCMP600BRJZ pin connection
