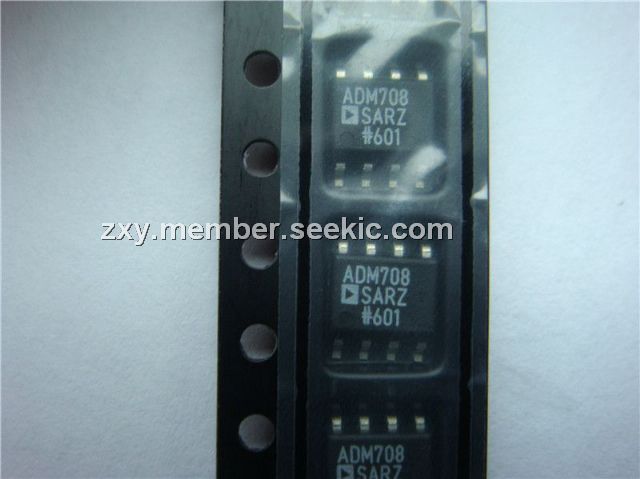

ADM708SA

Microprocessor Supervisory Circuit, SOP-8, 2.93V, 100 μA, 200 ms, ADM708SA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~1.00

PartNumber:: ADM708SA

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-03

From Other Seller

Part Number:ADM708SA
US $0.50 - 1.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

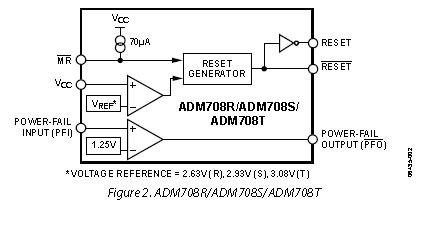

The ADM708SA is a microprocessor supervisory circuit. It is suitable for monitoring either 3 V or 3.3 V power supplies. The ADM708SA provides power-supply monitoring circuitry that generate a reset output during power-up, power-down, and brownout conditions. The reset output remains operational with VCC as low as 1 V. Independent watchdog monitoring circuitry is also provided. The device is available in narrow 8-lead PDIP and 8-lead SOIC packages. The applications of the ADM708SA are Microprocessor systems, Computers, Controllers, Intelligent instruments, Critical microprocessor monitoring, Battery-operated systems, Portable instruments.

Parametrics

ADM708SA absolute maximum ratings: (1)VCC:-0.3 V to +6 V; (2)All Other Inputs:-0.3 V to VCC + 0.3 V; (3)Input Current: VCC:20 mA, GND:20 mA; (4)Digital Output Current:20 mA; (5)Power Dissipation, R-8 (SOIC):470 mW,θJA Thermal Impedance:110℃/W; (6)Operating Temperature Range: Industrial (Version A):-40℃ to +85℃; (7)Lead Temperature (Soldering, 10 sec):300℃, Vapor Phase (60 sec):215℃, Infrared (15 sec):220℃; (8)Storage Temperature Range:-65℃ to +150℃; (9)ESD Rating >4.5 kV.

Features

ADM708SA features: (1)Precision supply voltage monitor:2.93 V; (2)100 μA quiescent current; (3)200 ms reset pulse width; (4)Debounced manual reset input (MR); (5)Reset output:Both active high and active low; (6)Voltage monitor for power-fail or low battery warning; (7)Guaranteed RESET valid with VCC = 1 V; (8)Superior upgrade for MAX706P/R/S/T, MAX708R/S/T.
