Product Summary

The AH101-G is a medium power gain block that offers excellent dynamic range in a low-cost surface mount package. The combination of a single supply voltage and an internally matched device makes it ideal for both narrow and broadband applications. Only dc blocking and bypass capacitors as well as an RF choke are required for operation. The applications of the AH101-G include Mobile Infrastructure, CATV / DBS, Defense / Homeland Security.

Parametrics

AH101-G absolute maximum ratings: (1)Operating Case Temperature: -40 to +85 ℃; (2)Storage Temperature: -55 to +150 ℃; (3)DC Voltage: +11 V; (4)RF Input Power (continuous): +18 dBm; (5)Junction Temperature: 220 ℃.

Features

AH101-G features: (1)50-1500 MHz; (2)+47 dBm Output IP3; (3)13.5 dB Gain; (4)+26.5 dBm P1dB; (5)MTTF > 1000 Years; (6)Internally Matched; (7)Single +9 V Supply; (8)Lead-free/Green/RoHS-compliant SOT-89 Package.

Diagrams

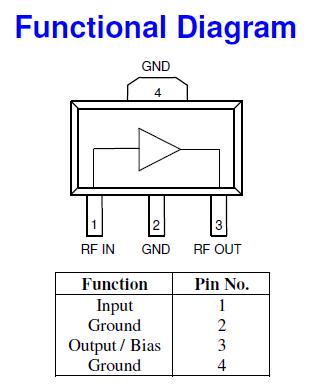

AH101-G Functional Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

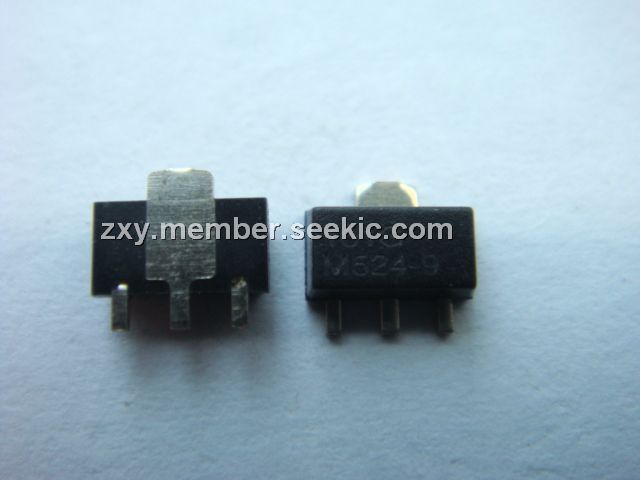

AH101-G
AH101-G

TriQuint Semiconductor

RF Amplifier 50.-1500MHz 13.5dB Gain

Data Sheet

0-1: $8.96
1-25: $6.78
25-100: $5.14
100-250: $4.88
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AH101
AH101

Other


Data Sheet

Negotiable
AH1018B
AH1018B


MODULE VF DISPLAY 10X1 6MM CHAR

Data Sheet

0-25: $19.50
AH101-G
AH101-G

TriQuint Semiconductor

RF Amplifier 50.-1500MHz 13.5dB Gain

Data Sheet

0-1: $8.96
1-25: $6.78
25-100: $5.14
100-250: $4.88
AH101-PCB
AH101-PCB

TriQuint Semiconductor

RF Development Tools 50-1500MHz Eval Brd 13.5dB Gain

Data Sheet

0-1: $80.00
AH102
AH102

Other


Data Sheet

Negotiable
AH102A
AH102A

Other


Data Sheet

Negotiable
