Product Summary

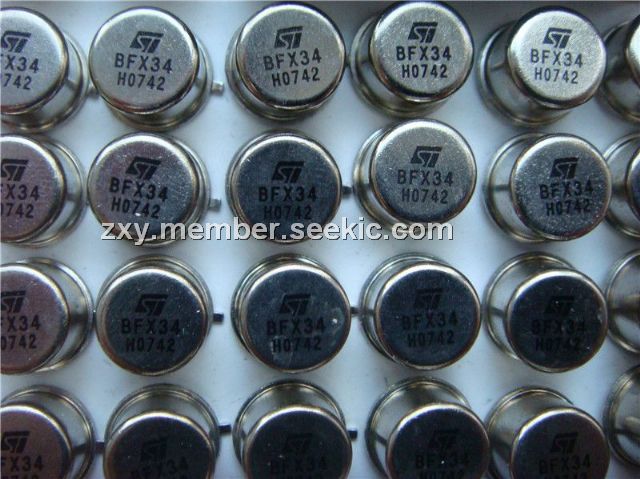

The BFX34 is a silicon NPN transistor in Jedec TO-39 metal case, intented for high current applications. Very low saturation voltage and high speed at high current levels make the BFX34 ideal for power drivers, power amplifiers, and switching power supplies and relay drivers inverters.
Parametrics
BFX34 absolute maximum ratings: (1)VCBO Collector-Base Voltage (IE=0): 120V; (2)VCEO Collector-Emitter Voltage (IB=0): 60V; (3)VEBO Emitter-Base Voltage (IC=0): 6V; (4)IC Collector Current: 5A; (5)Ptot Total Dissipation at Tcase≤25℃: 5W; (6)Tamb≤25℃: 0.87W; (7)Tstg Storage Temperature: -65℃ to 200℃; (8)Tj Max. Operating Junction Temperature: 200℃.
Features
BFX34 features: (1) ST Microelectronics PREFERRED SALESTYPE; (2) NPN transistor.

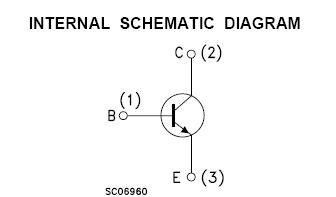

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 BFX34 |
STMicroelectronics |
Transistors Bipolar (BJT) NPN High Current GP |
Data Sheet |
Negotiable |
|
||||
