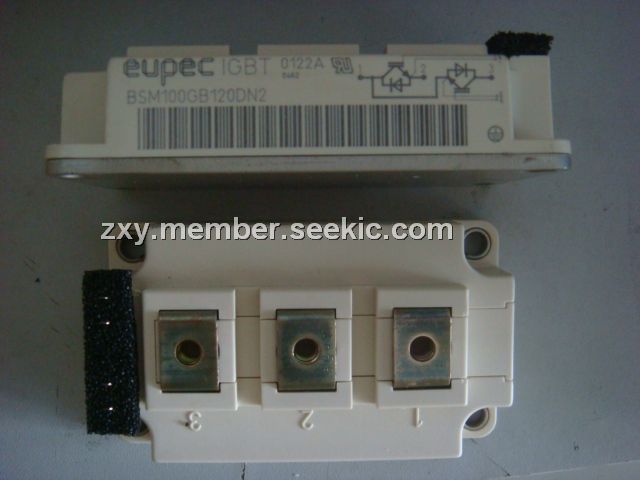

Product Summary

The BSM100GB120DN2 is an IGBT Power Module.

Parametrics

BSM100GB120DN2 absolute maximum ratings: (1)Collector-emitter voltage: 1200 V; (2)Collector-gate voltage: 1200 V at RGE = 20 kW; (3)Gate-emitter voltage: ± 20 V; (4)DC collector current: 150 A at TC = 25 ℃, 100 A at TC = 80 ℃; (5)Pulsed collector current, tp = 1 ms: 300 A at TC = 25 ℃, 200 A at TC = 80 ℃; (6)Power dissipation per IGBT: 800 W at TC = 25 ℃; (7)Chip temperature: + 150 ℃; (8)Storage temperature: -40 to + 125 ℃.

Features

BSM100GB120DN2 features: (1)Half-bridge; (2)Including fast free-wheeling diodes; (3)Package with insulated metal base plate.

Diagrams

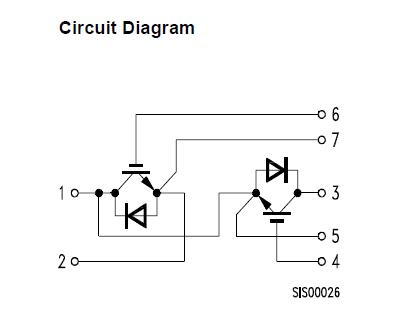

BSM100GB120DN2 circuit diagram
