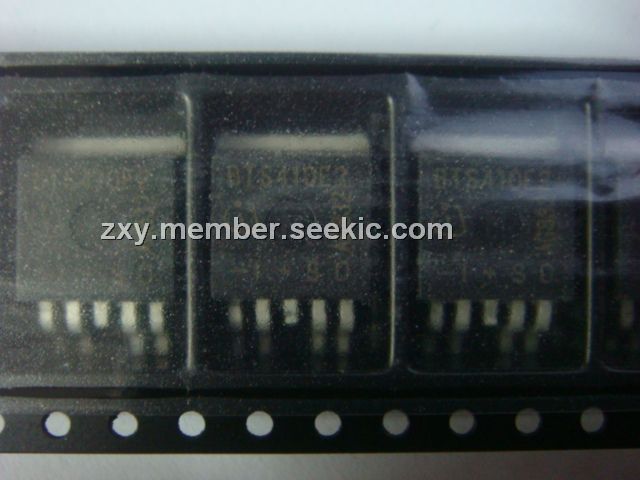

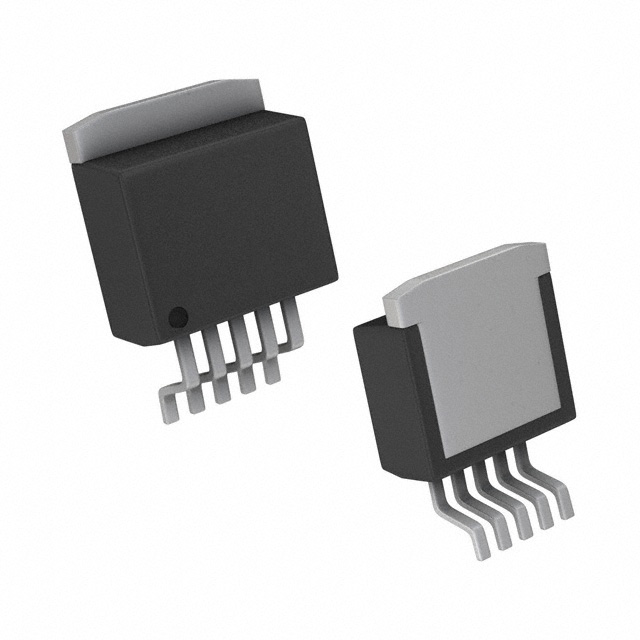

BTS410E2

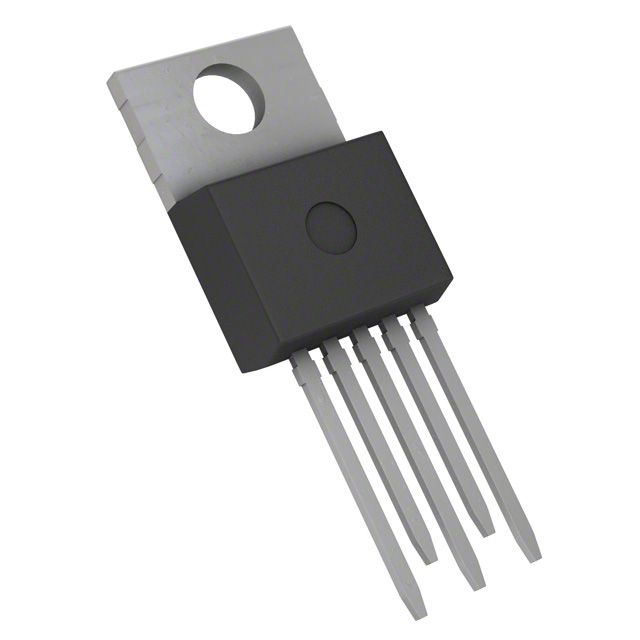

Smart Highside Power Switch, TO-220, 4.7 to 42V Operating voltage, 220 mΩ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~3.00

PartNumber:: BTS410E2

Brand:: eupec GmbH - infineon | Pack: TO | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-30

From Other Seller

Part Number:BTS410E2
US $1.00 - 3.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The BTS410E2 is a N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology. Providing embedded protective functions. The applications of BTS410E2 are: μC compatible power switch with diagnostic feedback for 12V and 24 V DC grounded loads; All types of resistive, inductive and capacitve loads; Replaces electromechanical relays, fuses and discrete circuits.

Parametrics

BTS410E2 absolute maximum ratings: (1)Supply voltage (overvoltage protection see page 3), Vbb: 65 V; (2)Load dump protection VLoadDump = UA + Vs, UA = 13.5 V, RI= 2 Ω, RL= 6.6 Ω, td= 400 ms, IN= low or high: VLoad dump: 100 V; (3)Load current (Short circuit current, see page 4), IL: self-limited A; (4)Operating temperature range, Tj: -40 to +150℃; (5)Storage temperature range, Tstg: -55 to +150℃; (6)Power dissipation (DC), TC ≤ 25 ℃, Ptot: 50 W; (7)Inductive load switch-off energy dissipation, single pulse, Vbb =12V, Tj,start =150℃, TC =150℃ const: EAS 4.5 J; (8)Electrostatic discharge capability (ESD) IN: VESD 1kV; (9)Input voltage (DC) VIN: -0.5 to +6 V; (10)Current through input pin (DC): IIN ±5.0 mA; (11)Current through status pin (DC) IST: ±5.0 mA.

Features

BTS410E2 features: (1)Overload protection; (2)Current limitation; (3)Short circuit protection; (4)Thermal shutdown; (5)Overvoltage protection (including load dump); (6)Fast demagnetization of inductive loads; (7)Reverse battery protection1); (8)Undervoltage and overvoltage shutdown with auto-restart and hysteresis; (9)Open drain diagnostic output; (10)Open load detection in ON-state; (11)CMOS compatible input; (12)Loss of ground and loss of Vbb protection; (13)Electrostatic discharge (ESD) protection.
