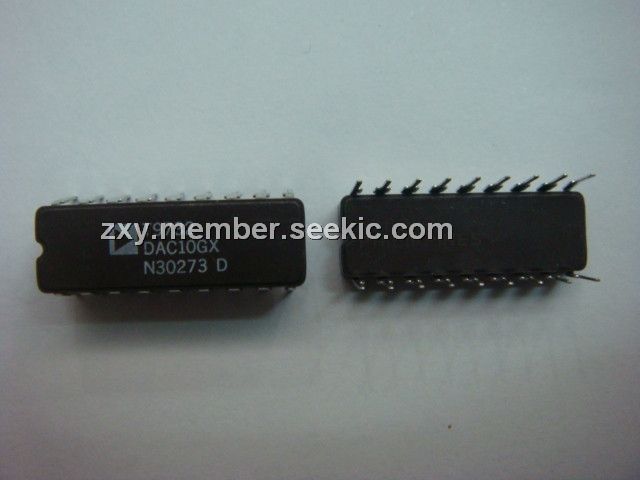

DAC10GX

DAC10GX, 10-Bit High Speed Multiplying D/A Converter, DIP, ±18 V, 1 MHz, 85 mW, DAC10GX

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~15.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~15.00

PartNumber:: DAC10GX

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-16

From Other Seller

Part Number:DAC10GX
US $5.00 - 15.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

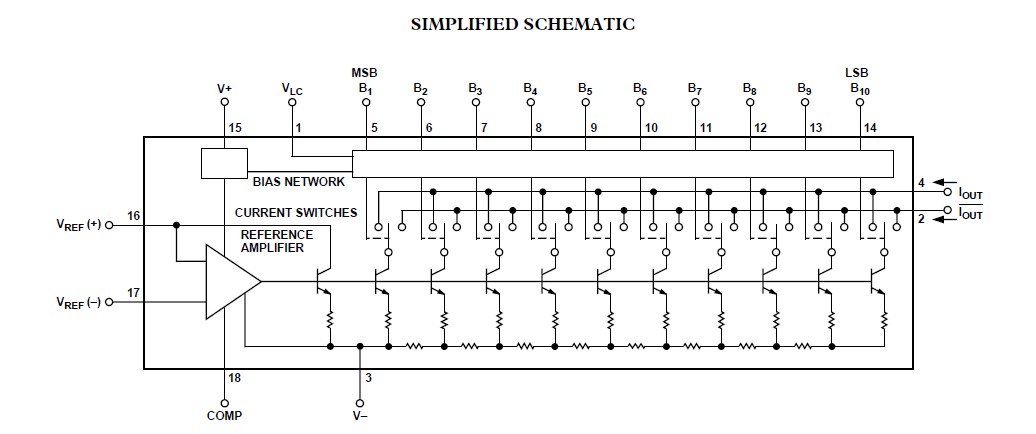

The DAC10GX is a kind of 10-bit monolithic multiplying digital-to-analog converter, which provides high speed performance and full-scale accuracy. The DAC10GX guarantees full 10-bit monotonicity, and nonlinearities as tight as +0.05% over the entire operating temperature range are available. Device performance is essentially unchanged over the ±18 V power supply range, with 85 mW power consumption attainable at lower supplies. A highly stable, unique trim method is used, which selectively shorts Zener diodes, to provide 1/2 LSB full-scale accuracy without the need for laser trimming.

Parametrics

DAC10GX absolute maximum ratings: (1)Operating Temperature: 0℃ to +70℃; (2)Junction Temperature (TJ): –65℃ to +150℃; (3)Storage Temperature: –65℃ to +150℃; (4)Lead Temperature (Soldering, 60 sec: +300℃; (5)V+ Supply to V– Supply: 36 V; (6)Logic Inputs: V– to V– plus 36 V; (7)VLC: V– to V+; (8)Analog Current Outputs : +18 V to –18 V; (9)Reference Inputs (V16 to V17): V– to V+; (10)Reference Input Differential Voltage (V16 to V17): ±18 V; (11)Reference Input Current (I16): 2.5 mA.

Features

DAC10GX features: (1)Fast Settling: 85 ns; (2)Low Full-Scale Drift: 10 ppm/8C; (3)Nonlinearity to 0.05% Max Over Temperature Range; (4)Complementary Current Outputs: 0 mA to 4 mA; (5)Wide Range Multiplying Capability: 1 MHz Bandwidth; (6)Wide Power Supply Range: +5, –7.5 Min to 618 V Max; (7)Direct Interface to TTL, CMOS, ECL, PMOS, NMOS; (8)Availability in Die Form.
