Product Summary

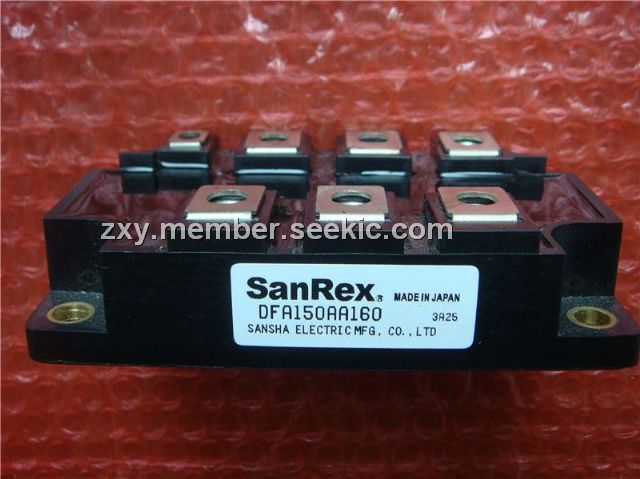

The DFA150AA160 is a three phase diode/thyristor. It is designed for rash current circuit. The DFA150AA160 contains six diodes connected in a three phase bridge configuration, and a thyristor connected to a direct current line. The applications of the DFA150AA160 include Inverter for AC or DC motor control, Current stabilized power supply, switching power supply.
Parametrics
DFA150AA160 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage: 1600V; (2)Non-Repetitive Peak Reverse Voltage: 1700V; (3)Output Current (D.C.) Three phase full wave, Tc＝93℃: 150A; (4)IFSM Surge forward current 1cycle, 50/60HZ, peak value, non-repetitive: 1460/1600A; (5)Tj Operating Junction Temperature: －40℃ to +150℃; (6)Tstg Storage Temperature: -40℃ to +125℃; (7)Isolation Breakdown Voltage (R.M.S.): 2500V; (8) Mass: 460g.
Features
DFA150AA160 features: (1) This Module is designed very compactly. Because diode module and thyristor put together; (2) This Module is also isolated type between electorode terminal and mounting base. So you can put this Module and other one together in a same fin.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DFA150AA160 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
DFA100BA160 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
DFA100BA80 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
DFA150AA160 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
DFA150AA80 |
Other |
|
Data Sheet |
Negotiable |
|
||||
