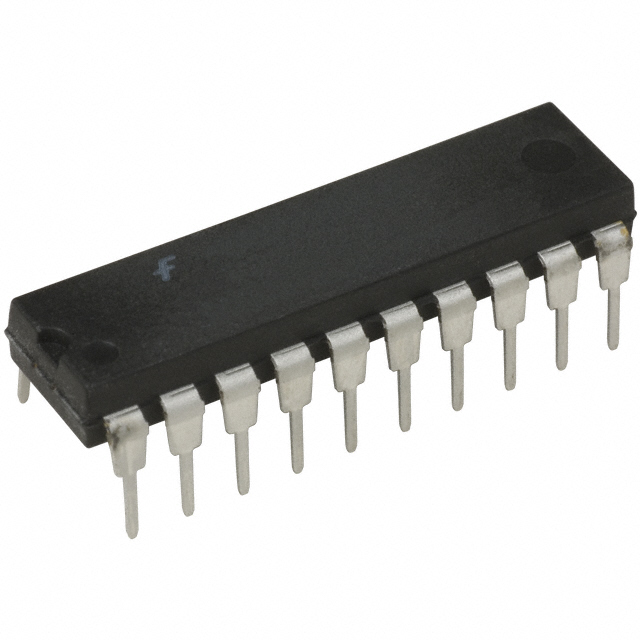

The DM74ALS520N is an 8 bit comparator. It performs an “equal to” comparison of two 8-bit words with provision for expansion or external enabling. The DM74ALS520N has totem pole outputs for wire AND cascading. Additionally, the DM74ALS520N is provided with B input pull up termination resistors for analog or switch data.
Parametrics
DM74ALS520N absolute maximum ratings: (1)Supply Voltage: 7V; (2)Input Voltage: 7V; (3)Operating Free Air Temperature Range: 0℃ to +70℃; (4)Storage Temperature Range: 65℃ to +150℃; (5)Typical θJA: N Package 62.0℃/W, M Package 82.0℃/W.
Features
DM74ALS520N features: (1)Switching specifications at 50 pF; (2)Switching specifications guaranteed over full temperature and VCC range; (3)Advanced oxide-isolated, ion-implanted Schottky TTL process; (4)Functionally and pin for pin compatible with LS family counterpart; (5)Improved output transient handling capability.

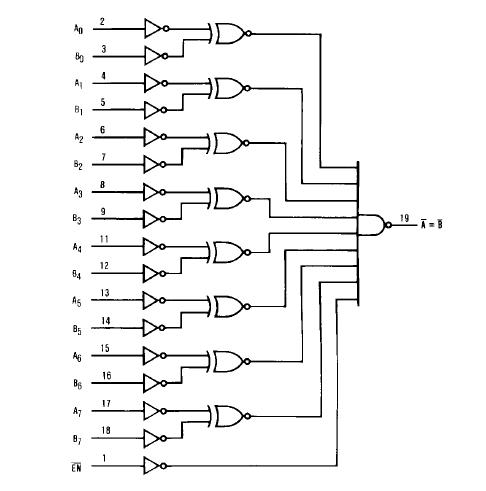

Diagrams
