Product Summary

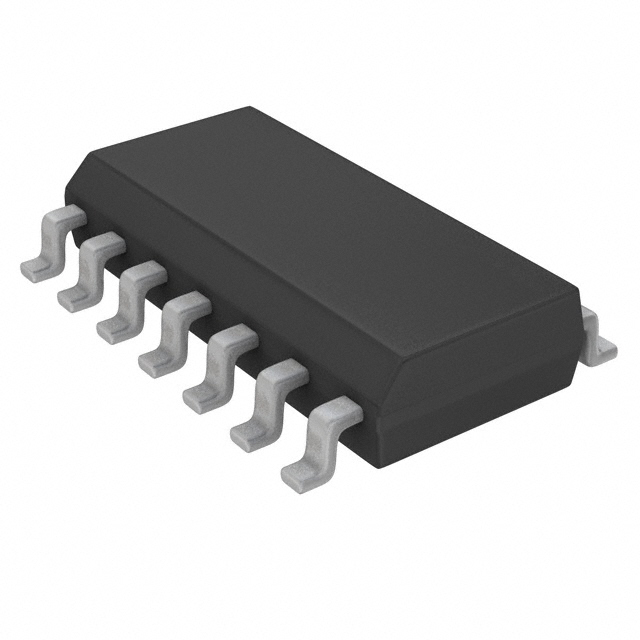

The DS1489AM is a Quad Line Receiver. It is designed to interface data terminal equipment with data communications equipment. The DS1489AM is constructed on a single monolithic silicon chip. The DS1489AM satisfies the specifications of EIA Standard RS-232D. The DS1489AM meets and exceeds the specifications of MC1489/MC1489A and is the pin-for-pin replacement.
Parametrics
DS1489AM absolute maximum ratings: (1)Power Supply Voltage: 10V; (2)Input Voltage Range: ±30V; (3)Output Load Current: 20 mA; (4)Power Dissipation: 1W; (5)Operating Temperature Range: 0℃ to +75℃; (6)Storage Temperature Range: -65℃ to +150℃; (7)Maximum Power Dissipation at 25℃: 1042 mW; (8)Lead Temperature (Soldering, 4 sec.): 260℃.
Features
DS1489AM features: (1)Four separate receivers per package; (2)Programmable threshold; (3)Built-in input threshold hysteresis; (4)“Fail safe” operating mode: high output for open inputs; (5)Inputs withstand ±30V.

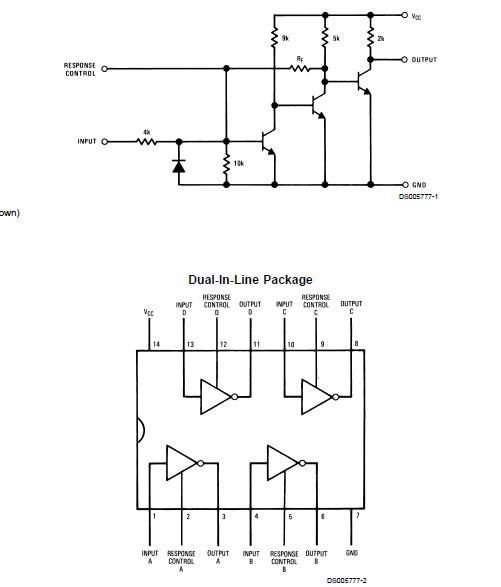

Diagrams
