Product Summary

The FLI32626H-BG is an innovative System-on-Chip SoC controller designed for flat panel. The FLI32626H-BG offers a high integration SoC solution for advanced analog TV dualchannel applications (e.g. PIP) and for TV products that require superior video and audio quality with extensive feature sets. The FLI32626H-BG includes a flexible analog and digital front end with a wide range of integrated components for different application needs as well as state-of-the-art dual channel video processing based on renowned Faroudja technologies. The FLI32626H-BG is the only device needed for a complete LCD TV solution chassis supporting worldwide video and audio standards where exceptional quality is required.

Features

FLI32626H-BG features: (1)Dual 10-bit triple ADCs with capture up to 165 MHz; (2)Integrated 3D video decoder; (3)Flexible digital and analog capture up to 165 MHz; (4)Integrated HDMI 1.3; (5)VBI Slicer including WST version 2.5 support; (6)Next generation true 10-bit Faroudja DCDi Cinema Format processing; (7)Flexible DDR2/DDR1 memory interface 32 bits wide; (8)Faroudja TrueLife Video Enhancer; (9)Advanced Picture-in-Picture (PIP) features capabilities; (10)Faroudja RealColor processing; (11)On-Chip Microprocessor; (12)Advanced bit-mapped OSD controller; (13)Embedded 10-bit dualchannel LVDS for 1080p panel support; (14)Multi-standard digital and analog audio decoder and post-processor.

Diagrams

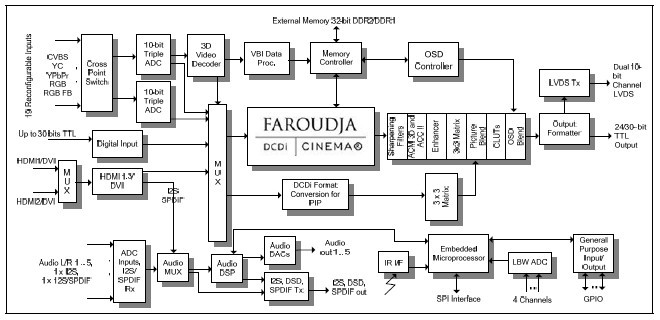

FLI32626H-BG circuit diagram
