Product Summary

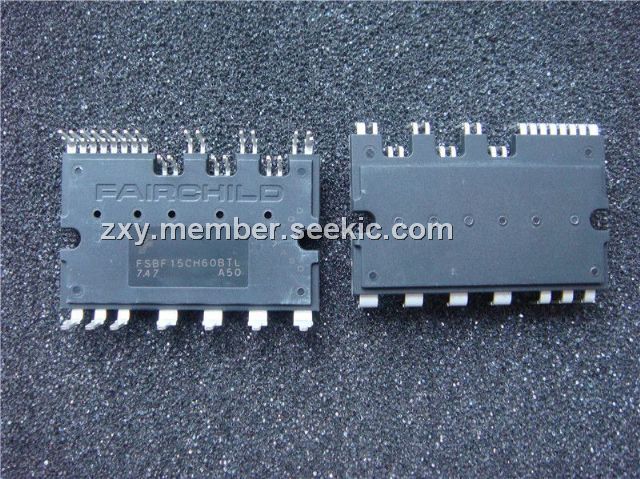

The FSBF15CH60BTL is a Smart Power Module. It has newly developed and designed to provide very compact and high performance ac motor drives mainly targeting low-power inverter-driven application like air conditioner and washing machine. The FSBF15CH60BTL combines optimized circuit protection and drive matched to low-loss IGBTs. System reliability is further enhanced by the integrated under-voltage lock-out and short-circuits protection. The high speed built-in HVIC provides opto-coupler-less single-supply IGBT gate driving capability that further reduce the overall size of the inverter system design. Each phase current of inverter can be monitored separately due to the divided negative dc terminals. The applications of the FSBF15CH60BTL include AC 100V to 253V three-phase inverter drive for small power ac motor drives, Home appliances applications like air conditioner and washing machine.
Parametrics
FSBF15CH60BTL absolute maximum ratings: (1)VPN Supply Voltage (Applied between P- NU, NV, NW): 450V; (2)VPN(Surge) Supply Voltage (Surge) (Applied between P- NU, NV, NW): 500V; (3)VCES Collector-emitter Voltage: 600V; (4)±IC Each IGBT Collector Current TC = 25℃: 15A; (5)±ICP Each IGBT Collector Current (Peak) TC = 25℃, Under 1ms Pulse Width: 30A; (6)PC Collector Dissipation TC = 25℃ per One Chip: 25W; (7)TJ Operating Junction Temperature: -40℃ to 150℃.
Features
FSBF15CH60BTL features: (1)UL Certified No.E209204(SPM27-JB package); (2)600V-15A 3-phase IGBT inverter bridge including control ICs for gate driving and protection; (3)Easy PCB layout due to built in bootstrap diode; (4)Divided negative dc-link terminals for inverter current sensing applications; (5)Single-grounded power supply due to built-in HVIC; (6)Isolation rating of 2500Vrms/min.

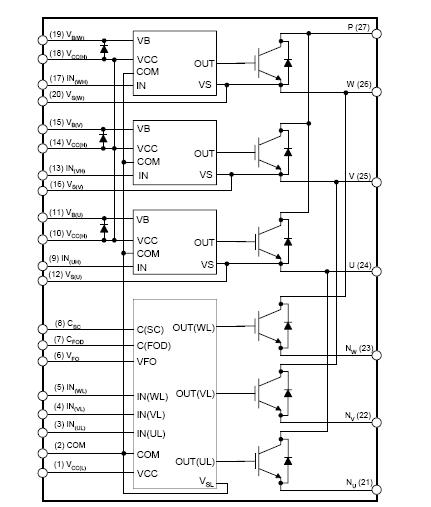

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FSBF15CH60BTL |
Fairchild Semiconductor |
IGBT Modules Smart Power Module |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
FSBF10CH60B |
Fairchild Semiconductor |
Motor / Motion / Ignition Controllers & Drivers Smart Power Module |
Data Sheet |
|
|
||||||||||||
|
FSBF10CH60BTL |
Fairchild Semiconductor |
Motor / Motion / Ignition Controllers & Drivers Smart Power Module |
Data Sheet |
|
|
||||||||||||
|
FSBF15CH60BT |
Fairchild Semiconductor |
IGBT Modules Smart Power Module |
Data Sheet |
|
|
||||||||||||
 |
FSBF15CH60BTH |
|
MODULE SPM MOTION CTRL SPM27-JC |
Data Sheet |
|
|
||||||||||||
|
FSBF15CH60BTL |
Fairchild Semiconductor |
IGBT Modules Smart Power Module |
Data Sheet |
Negotiable |
|
||||||||||||
|
FSBF15CH60CT |
Fairchild Semiconductor |
IGBT Modules 600V 15A Inverter for Mocion control |
Data Sheet |
|
|
||||||||||||
