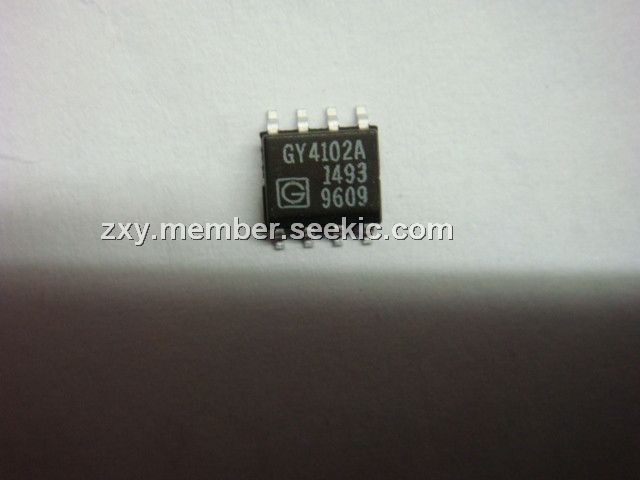

Product Summary
The GY4102A is a kind of bipolar, monolithic SPDT video switch incorporating fast control logic. The analog signal path is characterised by low differential gain, low differential phase and low insertion loss, coupled with a ±0.1 dB bandwidth of typically 100 MHz into a 10 pF load, using an external series resistor.In demanding video applications the GY4102A features a typical switching glitch of less than 30 mV over a 3 ns period. The GY4102A offers toggle rates up to 50 MHz. The control input is TTL and 5 V CMOS compatible. The GY4102A is ideal for: (1)Sub-pixel video switching; (2)Fast data sampling; (3)Modulation; (4)Special Effects video switching.
Parametrics
GY4102A absolute maximum ratings: (1)Supply Voltage: ± 6.0 V; (2)Operating Temperature Range: 0°C to 70℃; (3)Storage Temperature Range: -65°C to 150℃; (4)Lead Temperature (Soldering, 10 Sec): 260℃; (5)Analog Input Voltage (IN 0, IN 1): VEE <VIN <VCC +0.3 V; (6)Control Input Voltage Range: -5 V < VCTRL < VCC+0.3 V.
Features
GY4102A features: (1)20 ns switching time (toggle); (2)make-before-break switching; (3)100 MHz at .1dB, bandwidth (flattened); (4)typically 0.04 dB insertion loss at 1 MHz; (5)typically 0.03 % differential gain at 3.58 MHz; (6)typically 0.01 degree differential phase at 3.58 MHz.

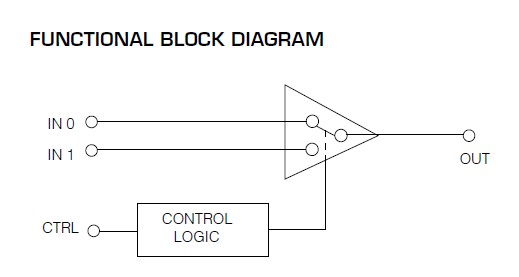

Diagrams
