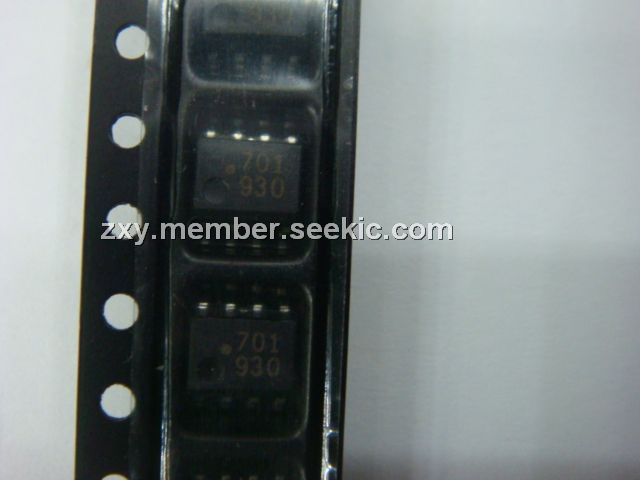

HCPL-0701

Optocoupler, Low Input Current, High Gain, SOP-8, 60 mA Output Current

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~1.50

PartNumber:: HCPL-0701

Brand:: Agilent Technologies - Agilent | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-28

From Other Seller

Part Number:HCPL-0701
US $0.50 - 1.50
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The high gain coupler HCPL-0701 uses a Light Emitting Diode and an integrated high gain photodetector to provide extremely high current transfer ratio between input and output. Separate pins for the photodiode and output stage result in TTL compatible saturation voltages and high speed operation. Where desired the VCC and VO terminals may be tied together to achieve conventional photodarlington operation. A base access terminal allows a gain bandwidth adjustment to be made. The applications of HCPL-0701 are: Ground Isolate Most Logic Families -TTL/TTL, CMOS/TTL, CMOS/CMOS, LSTTL/TTL, CMOS/LSTTL, Low Input Current Line Receiver, High Voltage Insulation (HCNW139/138), EIA RS-232C Line Receiver, Telephone Ring Detector, 117 V ac Line Voltage, Status Indicator-Low Input Power Dissipation, Low Power Systems Ground Isolation.

Parametrics

HCPL-0701 absolute maximum ratings: (1)Storage Temperature TS: -55 to 125 ℃; (2)Operating Temperature TA: -40 to 85 ℃; (3)Average Forward Input Current IF(AVG): 20 mA; (4)Peak Forward Input Current IFPK: 40 mA; (5)Peak Transient Input Current IF(TRAN): 1.0 A; (6)Reverse Input Voltage VR: 5 V; (7)Input Power Dissipation PI: 35 mW; (8)Output Current IO: 60 mA; (9)Emitter Base Reverse Voltage (Pin 5-7) VEB: 0.5 V; (10)Supply Voltage and Output Voltage VCC: -0.5 to 18 V; (11)Supply Voltage and Output Voltage VCC: -0.5 to 7 V; (12)Output Power Dissipation PO: 100 mW; (13)Total Power Dissipation PT: 135 mW.

Features

HCPL-0701 features: (1)High Current Transfer Ratio: 2000% Typical (4500% Typical for HCNW139/138); (2)Low Input Current Requirements: 0.5 mA; (3)TTL Compatible Output: 0.1 V VOL Typical; (4)Performance Guaranteed over Temperature 0℃ to 70℃; (5)Base Access Allows Gain Bandwidth Adjustment; (6)High Output Current: 60 mA; (7)Available in 8-Pin DIP or SOIC-8 Footprint or Widebody Package; (8)MIL-STD-1772 Version Available.
