Product Summary

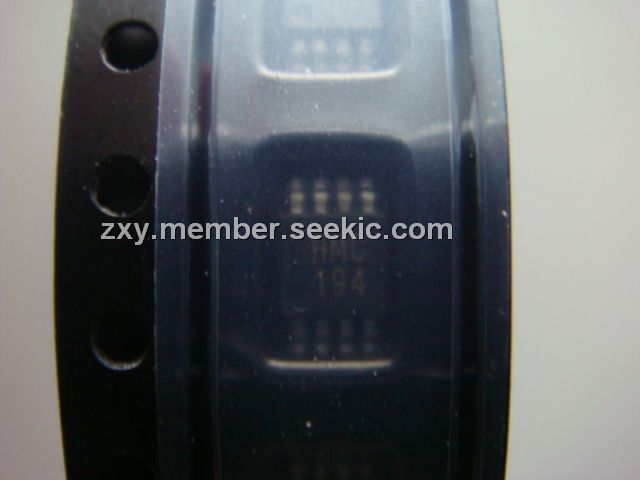

The HMC194MS8TR is a low-cost SPDT switch in an 8-lead MSOP package for use in applications which require high isolation between two RF paths. The HMC194MS8TR can control signals from DC to 3 GHz and has been optimized to provide extremely high isolation with minimal insertion loss in medium and low power applications. On chip circuitry allows positive voltage control operation at very low DC currents with control inputs compatible with CMOS and most TTL logic families. RF1 and RF2 are refl ective opens when “OFF”.

Parametrics

HMC194MS8TR absolute maximum ratings: (1)Control Voltage Range (A & B) -0.2 to +7.5 Vdc; (2)Storage Temperature -65 to +150 ℃; (3)Operating Temperature -40 to +85 ℃.

Features

HMC194MS8TR features: (1)Ultra Small Package: MSOP8; (2)High Isolation: 50 dB; (3)Positive Control: 0/+3V to 0/+7V.

Diagrams

HMC1001
HMC1001

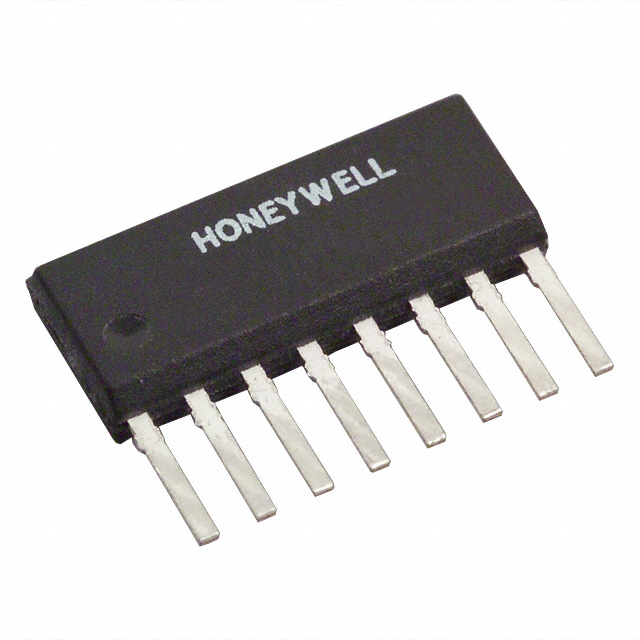

SENSOR LINEAR MAGN 1 AXIS 8-SIP
Data Sheet
0-1: $11.40
1-25: $9.90
25-100: $8.10
100-500: $6.60
500-1000: $5.93
HMC1001-RC
HMC1001-RC

SENSOR LINEAR MAGN 1 AXIS 8-SIP
Data Sheet
0-1: $15.88
1-25: $13.78
25-100: $11.28
100-500: $9.19
500-1000: $8.25
HMC1002
HMC1002

SENSOR LINEAR MAGN 2AXIS 20-SOIC
Data Sheet
Negotiable
HMC1002-TR
HMC1002-TR

SENSOR LINEAR MAGN 2AXIS 20-SOIC
Data Sheet
0-1: $12.60
1-25: $11.88
25-100: $11.22
100-500: $10.56
HMC1020LP4E
HMC1020LP4E

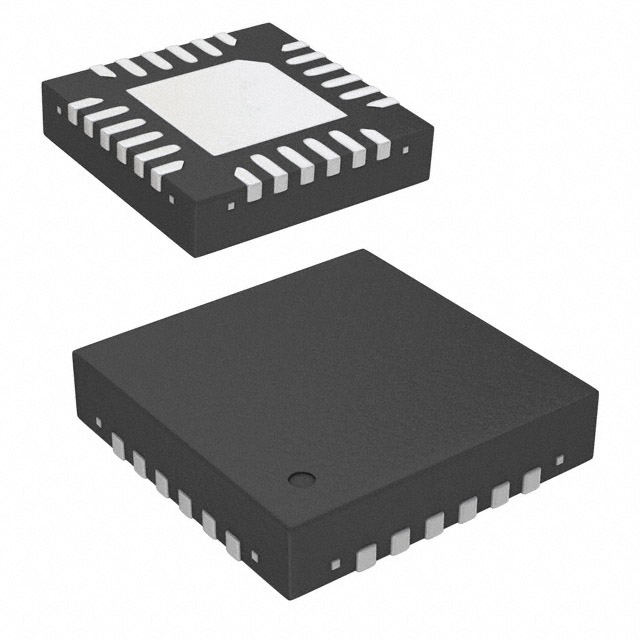

IC RMS PWR DETECTOR 65DB 24QFN
