Product Summary
The LAN91C111I-NC is designed to facilitate the implementation of a third generation of Fast Ethernet connectivity solutions for embedded applications. The LAN91C111I-NC is a mixed signal Analog/Digital device that implements the MAC and PHY portion of the CSMA/CD protocol at 10 and 100 Mbps. The design will also minimize data throughput constraints utilizing a 32-bit, 16-bit or 8-bit bus Host interface in embedded applications.
Parametrics
LAN91C111I-NC absolute maxing ratings: (1)Operating Temperature Range: -40℃ to 85℃ ; (2)Storage Temperature Range: -55℃ to + 150℃; (3)Lead Temperature Range (soldering, 10 seconds): +325℃; (4)Positive Voltage on any pin, with respect to Ground: VCC + 0.3V; (5)Negative Voltage on any pin, with respect to Ground: -0.3V; (6)Maximum VCC: +5V.
Features
LAN91C111I-NC features: (1)Single Chip Ethernet Controller; (2)Dual Speed - 10/100 Mbps; (3)Fully Supports Full Duplex Switched Ethernet; (4)Supports Burst Data Transfer; (5)8 Kbytes Internal Memory for Receive and Transmit FIFO Buffers; (6)Enhanced Power Management Features; (7)Optional Configuration via Serial EEPROM Interface; (8)Supports 8, 16 and 32 Bit CPU Accesses; (9)Internal 32 Bit Wide Data Path (Into Packet Buffer Memory); (10)Early TX, Early RX Functions.

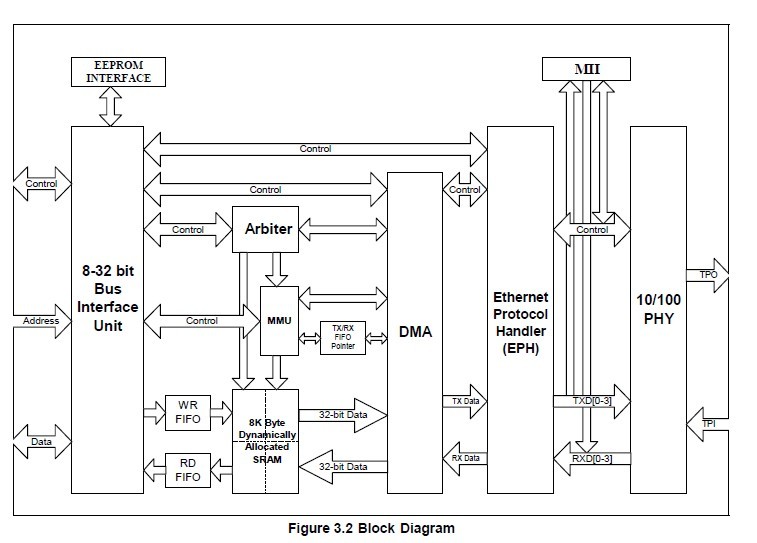

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

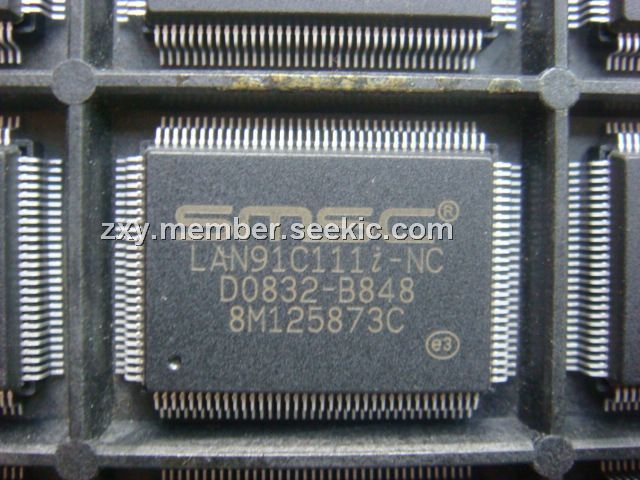

LAN91C111I-NC |
SMSC |
Ethernet ICs Non-PCI 10/100 Ethernet MAC |
Data Sheet |
Negotiable |
|
|||||||||||||
