Product Summary
The LM1458MX/NOPB is a general purpose dual operational amplifier. It has a common bias network and power supply lead. Otherwise, its operation is completely independent. The LM1458MX/NOPB is identical to the LM1558 except that the LM1458MX/NOPB has its specifications guaranteed over the temperature range from 0℃ to +70℃ instead of −55℃ to +125℃.
Parametrics
LM1458MX/NOPB absolute maximum ratings: (1)Supply Voltage: ±18V; (2)Power Dissipation: 400 mW; (3)Differential Input Voltage: ±30V; (4)Input Voltage: ±15V; (5)Output Short-Circuit Duration: Continuous; (6)Operating Temperature Range: 0℃ to +70℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Lead Temperature (Soldering, 10 sec.): 260℃; (9)Soldering Information Dual-In-Line Package Soldering (10 seconds): 260℃; (10)Small Outline Package Vapor Phase (60 seconds): 215℃; (11)Small Outline Package Infrared (15 seconds): 220℃.
Features
LM1458MX/NOPB features: (1)Low-power consumption; (2)No frequency compensation required; (3)Short-circuit protection; (4)8-lead can and 8-lead mini DIP; (5)Wide common-mode and differential voltage ranges; (6)No latch up when input common mode range is exceeded.

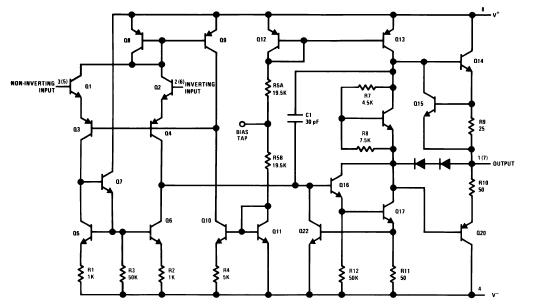

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LM1458MX/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
|||||||||||||
