LM201AH

Product Summary

The LM201AH is a general purpose operational amplifier which features improved performance over industry standards like the LM709. Advanced processing techniques make possible an order of magnitude reduction in input currents, and a redesign of the biasing circuitry reduces the temperature drift of input current. The LM201AH offers many features which make its application nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, and freedom from oscillations and compensation with a single 30 pF capacitor. The LM201AH has advantages over internally compensated amplifiers in that the frequency compensation can be tailored to the particular application. For example, in low frequency circuits, the LM201AH can be overcompensated for increased stability margin. Or the compensation can be optimized to give more than a factor of ten improvement in high frequency performance for most applications. In addition, the LM201AH provides better accuracy and lower noise in high impedance circuitry. The low input currents also make it particularly well suited for long interval integrators or timers, sample and hold circuits and low frequency waveform generators. Further, replacing circuits where matched transistor pairs buffer the inputs of conventional IC op amps, the LM201AH can give lower offset voltage and a drift at a lower cost. The LM201AH is guaranteed over a temperature range of -25℃ to +85℃.

Parametrics

LM201AH absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±30V; (3)Input Voltage: ±15V; (4)Output Short Circuit Duration: Continuous; (5)Operating Ambient Temp. Range: -25℃ to +85℃; (6)TJ Max: H-Package 150℃, N-Package 150℃, J-Package 150℃; (7)Power Dissipation at TA = 25℃: H-Package (Still Air) 500 mW, H-Package (400 LF/Min Air Flow) 1200 mW, N-Package 900 mW, J-Package 1000 mW; (8)Thermal Resistance (Typical) θjA H-Package (Still Air) 165℃/W, H-Package (400 LF/Min Air Flow) 67℃/W, N Package 135℃/W, J-Package 110℃/W; (9)(Typical) θjC H-Package 25℃/W; (10)Storage Temperature Range: -65℃ to +150℃; (11)Lead Temperature (Soldering, 10 sec.) Metal Can or Ceramic: 300℃; (12)Lead Temperature (Soldering, 10 sec.) Plastic: 260℃; (13)ESD Tolerance: 2000V.

Features

LM201AH features: (1)Offset voltage 3 mV maximum over temperature; (2)Input current 100 nA maximum over temperature; (3)Offset current 20 nA maximum over temperature; (4)Guaranteed drift characteristics; (5)Offsets guaranteed over entire common mode and supply voltage ranges; (6)Slew rate of 10V/μs as a summing amplifier.

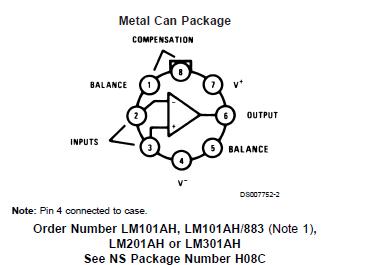

Diagrams
