LM2405T

LM2405T, TO-220-11, Monolithic Triple 7 ns CRT Driver, +16V,

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.30~3.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.30~3.50

PartNumber:: LM2405T

Brand:: National Semiconductor - NS | Pack: ZIP | D/C: 01+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sophia's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-11-15

From Other Seller

Part Number:LM2405T
US $3.30 - 3.50
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

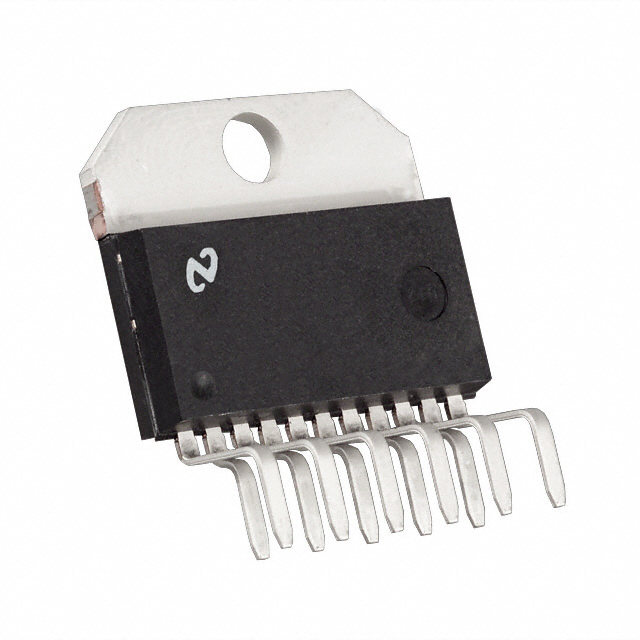

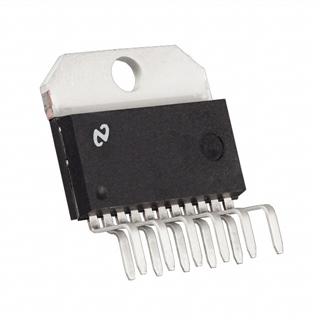

The LM2405T is an integrated high voltage CRT driver circuit designed for use in color monitor applications. The LM2405T is a high input impedance, wide band amplifier which directly drive the RGB cathodes of a CRT. Each channel has its gain internally set at -14 and can drive CRT capacitive loads as well as resistive loads presented by other applications, limited only by the package’s power dissipation. The LM2405T is packaged in an industry standard 11 lead TO-220 molded plastic power package.

Parametrics

LM2405T absolute maximum ratings: (1)Supply Voltage (VCC): +90V; (2)Bias Voltage (VBB): +16V; (3)Input Voltage (VIN): -0.5V to VBIAS + 0.5V; (4)Storage Temperature Range (TSTG): -65℃ to +150℃; (5)Lead Temperature (Soldering, <10 sec.): 300℃; (6)ESD Tolerance: 2 kV.

Features

LM2405T features: (1)Rise/fall times typically 7 ns with 8 pF load; (2)Output swing capability: 50 VPP for VCC = 80, 40 VPP for VCC = 70, 30 VPP for VCC = 60; (3)Pinout designed for easy PCB layout; (4)0V to 6V input range; (5)Stable with 0 pF–20 pF capactive loads; (6)Convenient TO-220 staggered lead package style.
