Product Summary

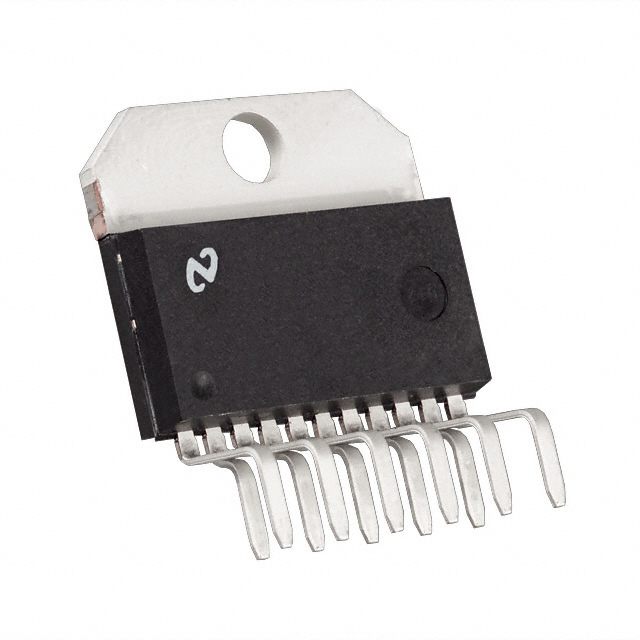

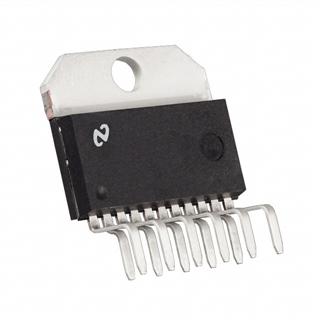

The LM2407T is an integrated high voltage CRT driver circuit; (2)designed for use in color monitor applications. The LM2407T is a high input impedance, wide band amplifier which directly drives the RGB cathodes of a CRT. Each channel has its gain internally set to -14 and can drive CRT capacitive loads as well as resistive loads present in other applications, limited only by the package’s power dissipation. The LM2407T is packaged in an industry standard 11-lead TO-220 molded plastic power package.
Parametrics
LM2407T absolute maximum ratings: (1)Supply Voltage, (VCC): +90V; (2)Bias Voltage, (VBB): +16V; (3)Input Voltage, (VIN): -0.5V to VBIAS +0.5V; (4)Storage Temperature Range, (TSTG): -65℃ to +150℃; (5)Lead Temperature (Soldering, <10 sec.): 300℃; (6)ESD Tolerance, Human Body Model: 2 kV; (7)ESD Tolerance, Machine Model: 300V.
Features
LM2407T features: (1)Low power dissipation; (2)Well matched with LM1279 video preamp; (3)0V to 5V input range; (4)Stable with 0 pF–20 pF capacitive loads and inductive peaking networks; (5)Convenient TO-220 staggered lead package style; (6)Standard LM240X Family Pinout which is designed for easy PCB layout.

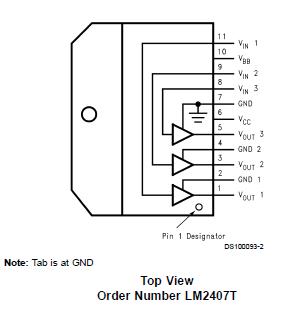

Diagrams
