Product Summary
The LM2936BMX-5.0 is an ultra-low quiescent current regulator. It features low dropout voltage and low current in the standby mode. With less than 15 μA quiescent current at a 100 μA load, the LM2936BMX-5.0 is ideally suited for automotive and other battery operated systems. The LM2936BMX-5.0 retains all of the features that are common to low dropout regulators including a low dropout PNP pass device, short circuit protection, reverse battery protection, and thermal shutdown. The LM2936BMX-5.0 has a 40V maximum operating voltage limit, a -40 to +125℃ operating temperature range, and ±3% output voltage tolerance over the entire output current, input voltage, and temperature range. The LM2936BMX-5.0 is available in a TO-92 package, a SO-8 surface mount package, and a TO-252 surface mount power package.
Parametrics
LM2936BMX-5.0 absolute amximum ratings: (1)Input Voltage (Survival): +60V, -50V; (2)ESD Susceptibility: 2000V; (3)Power Dissipation:Internally limited; (4)Junction Temperature (TJmax): 150℃; (5)Storage Temperature Range: -65 to +150℃; (6)Lead Temperature (Soldering, 10sec.): 260℃.
Features
LM2936BMX-5.0 features: (1)Ultra low quiescent current (IQ ≤ 15 μA for IO ≤ 100 μA); (2)Fixed 5V, 50 mA output; (3)Output tolerance ±3% over line, load, and temperature; (4)Dropout voltage typically 200 mV @ IO = 50 mA; (5)Reverse battery protection; (6)-50V reverse transient protection; (7)Internal short circuit current limit; (8)Internal thermal shutdown protection; (9)Shutdown Pin available.

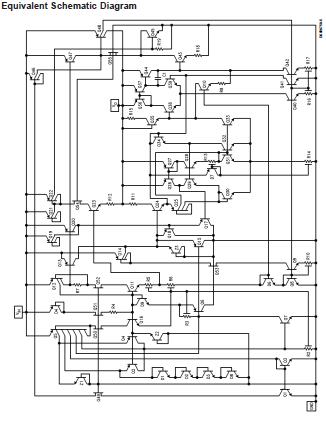

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2936BMX-5.0 |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators |
Data Sheet |
|
|
||||||||||||
|
LM2936BMX-5.0/NOPB |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators |
Data Sheet |
|
|
||||||||||||
